Product Summary
The TPS77618DRG4 is a 500mA low-dropout voltage regulator. It is designed to have a fast transient response and be stable with a 10μF low ESR capacitor. This combination provides high performance at a reasonable cost. The applications of the TPS77618DRG4 include FPGA Power, DSP Core and I/O Voltages.
Parametrics
TPS77618DRG4 absolute maximum ratings: (1)input voltage range: -0.3 to 13.5V; (2)storage temperature range: -65 to 150℃; (3)voltage range at EN: -0.3 to 13.5V; (4)maximum PG voltage: 16.5V; (5)operating virtual junction temperature range: +-40 to 125℃; (6)peak output current:internally limited; (7)output voltage: 7 V; (8)ESD rating,HBM:2kV.
Features
TPS77618DRG4 features: (1)open drain power good (TPS776xx); (2)500-mA low-dropout voltage regulator; (3)ultra low 85 mA typical quiescent current; (4)fast transient response; (5)2% tolerance over specified conditions for fixed-output versions; (6)8-Pin SOIC and 20-Pin TSSOP powerPAD(TM) (PWP) package; (7)thermal shutdown protection.

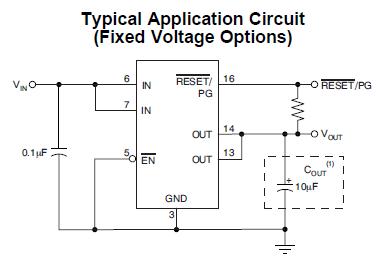

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TPS77618DRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Fast-Tran-Res 500-mA |
Data Sheet |
|
|
|||||||||||||
