Product Summary

The TPS54910PWPR is a 3V to 4V input, 9A output synchronous buck PWM switcher with integrated FETs. The TPS54910PWPR integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter L and C components; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing. The applications of the TPS54910PWPR include Low-Voltage, High-Density Systems With Power Distributed at 3.3 V, Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors, Broadband, Networking and Optical Communications Infrastructure, Portable Computing/Notebook PCs.

Parametrics

TPS54910PWPR absolute maximum ratings: (1)Input voltage range, VI SS/ENA, SYNC: –0.3 to 7V; (2)RT: –0.3 to 6V; (3)VI VSENSE:–0.3 to 4V; (4)VIN: –0.3 to 4.5V; (5)BOOT: –0.3 to 10V; (6)Output voltage range VBIAS, COMP, PWRGD: –0.3 to 7V; (7)PH :–0.6 to 6V; (8)Source current IO PH: Internally Limited; (9)COMP, VBIAS: 6mA; (10)Sink current PH: 16A; (11)Voltage differential AGND to PGND: ±0.3V; (12)Operating virtual junction temperature range, TJ:–40 to 125℃; (13)Storage temperature, Tstg:–65 to 150℃; (14)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.

Features

TPS54910PWPR features: (1)15mΩ MOSFET Switches for High Efficiency at 9A Continuous Output; (2)0.9V to 2.5V Adjustable Output Voltage; (3)Externally Compensated With 1% Accuracy; (4)Fast Transient Response; (5)Wide PWM Frequency: Fixed 350 kHz, 550 kHz or Adjustable 280 kHz to 700 kHz; (6)Load Protected by Peak Current Limit and Thermal Shutdown; (7)Integrated Solution Reduces Board Area and Total Cost.

Diagrams

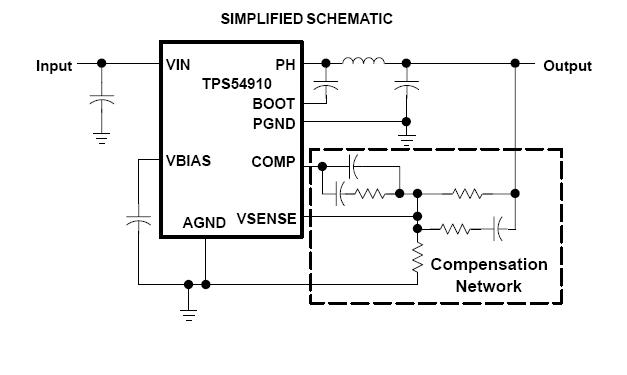

TPS54910PWPR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS54910PWPR
TPS54910PWPR

Texas Instruments

DC/DC Switching Regulators 3.3V Inp 9A Sync Buck Converter

Data Sheet

0-1600: $2.74
1600-2000: $2.72
TPS54910PWPRG4
TPS54910PWPRG4

Texas Instruments

DC/DC Switching Regulators 3.3V Inp 9A Sync Buck Converter

Data Sheet

0-1600: $2.74
1600-2000: $2.72
