TLC0832IDR

TLC0832IDR, analog-to-digital converter, 8-SOIC, 12.5mW, 6.5V, 20mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.04~2.04 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
5000 ~ 5000 :	2.04 / Piece

PartNumber:: TLC0832IDR

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-21

From Other Seller

Part Number:TLC0832IDR
US $2.04 - 2.04
Quantity:

piece

Product Summary

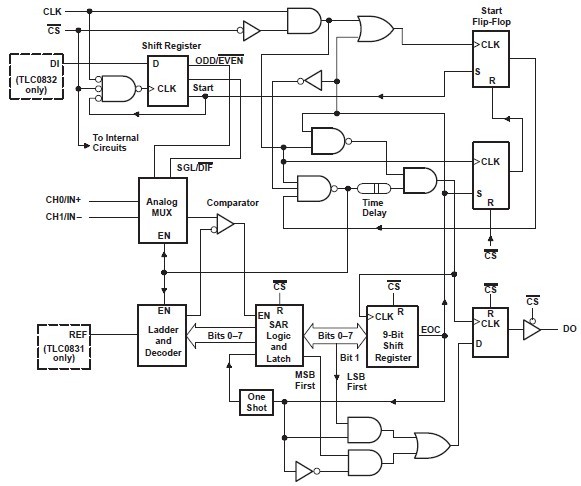

The TLC0832IDR is an 8-bit successive-approximation analog-to-digital converter. The TLC0832IDR has multiplexed twin input channels. The serial output is configured to interface with standard shift registers or microprocessors. The TLC0832IDR multiplexer is software configured for single-ended or differential inputs. The differential analog voltage input allows for common-mode rejection or offset of the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution. The operation of the TLC0832IDR device is very similar to the more complex TLC0834 and TLC0838 devices. Ratiometric conversion can be attained by setting the REF input equal to the maximum analog input signal value, which gives the highest possible conversion resolution. Typically, REF is set equal to VCC (done internally on the TLC0832IDR).

Parametrics

TLC0832IDR absolute maximum ratings: (1)Supply voltage, VCC: 6.5 V; (2)Input voltage range, VI: Logic: -0.3 V to VCC + 0.3 V; Analog : -0.3 V to VCC + 0.3 V; (3)Input current, II : ±5mA; (4)Total input current: ±20mA; (5)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃; I suffix: -40℃ to 85℃; (6)Storage temperature range, Tstg: -65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: P package: 260℃.

Features

TLC0832IDR features: (1)8-Bit Resolution; (2)Easy Microprocessor Interface or Standalone Operation; (3)Operates Ratio metrically or With 5-V Reference; (4)Single Channel or Multiplexed Twin Channels With Single-Ended or Differential Input Options; (5)Input Range 0 to 5 V With Single 5-V Supply; (6)Inputs and Outputs Are Compatible With TTL and MOS; (7)Conversion Time of 32 ms at fclock = 250 kHz; (8)Designed to Be Interchangeable With National Semiconductor ADC0831 and ADC0832; (9)Total Unadjusted Error: ± 1 LSB.
