SN74AHCT244QDWRQ1

SN74AHCT244QDWRQ1, OCTAL BUFFER/DRIVER, TSSOP, –0.5 V to 7 V, ±20 mA, ±75 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
4000 ~ 4000 :	0.20 / Piece

PartNumber:: SN74AHCT244QDWRQ1

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-29

From Other Seller

Part Number:SN74AHCT244QDWRQ1
US $0.20 - 0.20
Quantity:

piece

Product Summary

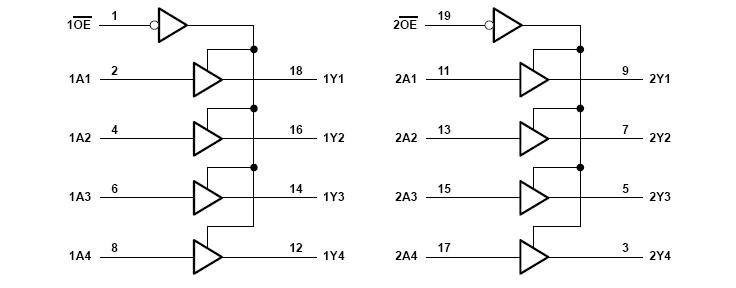

The SN74AHCT244QDWRQ1 is an octal buffer/driver. The SN74AHCT244QDWRQ1 is designed specifically to improve both the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters. The SN74AHCT244QDWRQ1 is organized as two 4-bit buffers/line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.

Parametrics

SN74AHCT244QDWRQ1 absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to 7 V; (3)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI ＜0): –20 mA; (5)Output clamp current, IOK (VO ＜0 or VO＞VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±75 mA; (8)Package thermal impedance, θJA: DB package: 70℃/W, DGV package: 92℃/W, DW package: 58℃/W, N package: 69℃/W, NS package: 60℃/W, PW package: 83℃/W; (9)Storage temperature range, Tstg: –65℃ to 150℃.
