SN74AHC245QDWRQ1

SN74AHC245QDWRQ1, octal bus transceiver, TSSOP, -0.5V to 7V, 20mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
4000 ~ 4000 :	0.20 / Piece

PartNumber:: SN74AHC245QDWRQ1

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-29

From Other Seller

Part Number:SN74AHC245QDWRQ1
US $0.20 - 0.20
Quantity:

piece

Product Summary

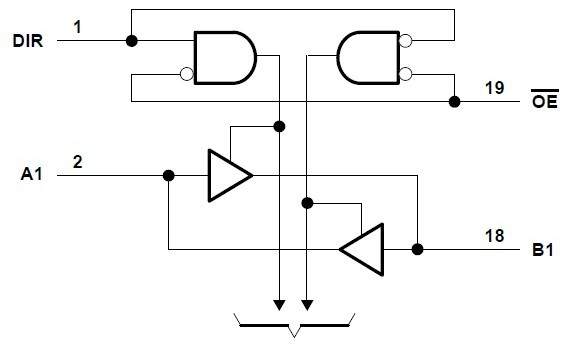

The SN74AHC245QDWRQ1 is an octal bus transceiver. It is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The SN74AHC245QDWRQ1 allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Parametrics

SN74AHC245QDWRQ1 absolute maixmum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: Control inputs: –0.5 V to 7 V; (3)I/O, Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): Control inputs: –20 mA; (5)I/O, Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±75 mA; (8)Package thermal impedance, θJA (see Note 2): DB package: 70℃/W; DGV package: 92℃/W; DW package: 58℃/W; N package: 69℃/W; PW package: 83℃/W; (9)Storage temperature range, Tstg: –65℃ to 150℃.
