Product Summary
The SN65LVELT22DR is a dual LVTTL to differential LVPECL translator buffer. It operates on +3V supply and ground only. The output is driven default high when the inputs are left floating or unused. The low output skew makes the device the ideal solution for clock or data signal translation. The SN65LVELT22DR is housed in an industry standard SOIC-8 package and is also available in TSSOP-8 package option. The applications of the SN65LVELT22DR include Data and Clock Transmission over Backplane and Signaling Level Conversion for Clock or Data.
Parametrics
SN65LVELT22DR absolute maximum ratings: (1)Absolute PECL mode supply voltage, VCC GND = 0V: 6V; (2)VIN input voltage VI ≤ VCC: 6V; (3)Output current Continuous 50mA; (4)Output current Surge: 100mA; (5)Operating temperature range: –40 to 85℃; (6)Storage temperature range: –65 to 150℃.
Features
SN65LVELT22DR features: (1)450ps (typ) Propagation Delay; (2)Operating Range: VCC 3.0 V to 3.8 with GND = 0 V; (3)<50ps (max) Output to Output Skew; (4)Built-in Temperature Compensation; (5) Drop in Compatible to MC100LVELT22.

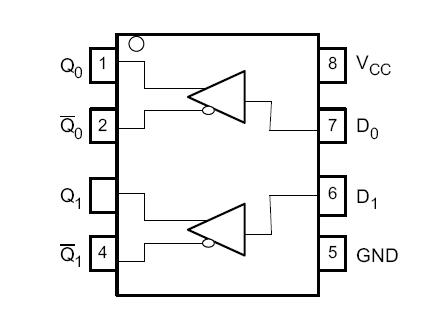

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SN65LVELT22DR |
![]() Texas Instruments |
![]() Translation - Voltage Levels 3.3V Dual LVTTL to Diff LVPECL Trans |
![]() Data Sheet |
![]()
|
|
||||||||||||
