Product Summary
The PTN04050CAZ is a 4-pin boost-voltage regulator product. In new designs it should be considered in place of the PT5040 series of positive step-up products. The PTN04050CAZ is smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics. The case-less, double-sided package, also exhibits improved thermal characteristics, and is compatible with TI’s roadmap for RoHS and lead-free compliance. The applications of the PTN04050CAZ include Telecommunications, Instrumentation, and General-Purpose Applications.
Parametrics
PTN04050CAZ absolute maximum ratings: (1)TA Operating free-air temperature Over VI range: –40℃ to 85℃; (2)Leaded temperature (H suffix) 5 seconds: 260℃ (2); (3)Solder reflow temperature (S suffix) Surface temperature of module body or pins: 235℃; (4)Solder reflow temperature (Z suffix)(3) Surface temperature of module body or pins: 260℃(3); (5)Tstg Storage temperature: –40℃ to 125℃; (6)PO Output power: 12W.
Features
PTN04050CAZ features: (1)Up to 12 W Output Power; (2)Wide Input Voltage Range (2.95 V to 5.5 V); (3)Wide Output Voltage Adjust (5 V to 15 V); (4)High Efficiency (Up to 90%); (5)Operating Temperature: –40℃ to 85℃; (6)Surface Mount Package Available.

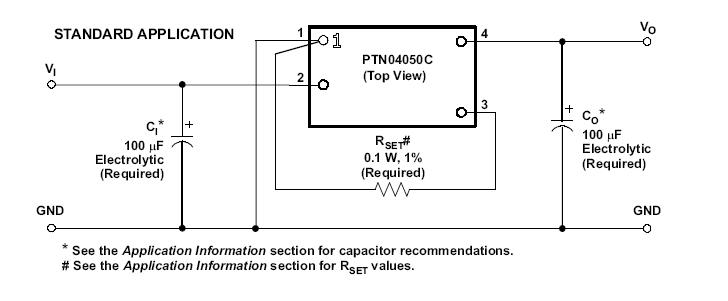

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PTN04050CAZ |
Texas Instruments |
DC/DC Converters 12W 3.3/5V In Wide Adj Out Boost Cnvtr |
Data Sheet |
|
|
|||||||||||||
PTN04050CAZT |
Texas Instruments |
DC/DC Converters 12W 3.3/5V In Wide Adj Out Boost Cnvtr |
Data Sheet |
|
|
