Product Summary
The PTH08000WAH is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. The PTH08000WAH sources output current at a much higher efficiency than a TO-220 linear regulator IC, eliminating the need for a heat-sink. The small size (0.75 inch×0.5 inch) and flexible operation creates value for a variety of applications. The applications of the PTH08000WAH include Telecommunications, Instrumentation, and Genera-Purpose Circuits.
Parametrics
PTH08000WAH absolute maximum ratings: (1)TA Operating free-air temperature Over VI range: –40 to 85℃; (2)Lead temperature (H suffix) 5 seconds: 260℃; (3)Solder reflow temperature (S suffix) Surface temperature of module body or pins: 235℃; (4)Solder reflow temperature (Z suffix)(2) Surface temperature of module body or pins: 260℃; (5)Tstg Storage temperature: –55 to 125℃.
Features
PTH08000WAH features: (1)Up to 2.25-A Output Current at 85℃; (2)4.5-V to 14-V Input Voltage Range; (3)Wide-output voltage adjust (0.9V to 5.5V); (4)Efficiencies Up to 94%; (5)On/Off Inhibit; (6)Under-voltage Lockout (UVLO); (7)Output Over-current Protection (Non-latching, Auto-Reset); (8)Over-temperature Protection; (9)Ambient Temperature Range: –40℃ to 85℃; (10)Surface-Mount Package; (11)Safety Agency Approvals: UL/CUL 60950, EN60950.

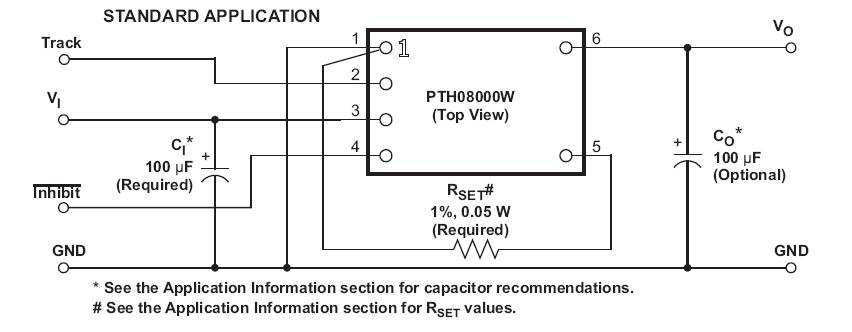

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PTH08000WAH |
Texas Instruments |
DC/DC Converters 2.25A 5/12V Input WideAdj Module |
Data Sheet |
|
|
|||||||||||||
