Product Summary

The MSP430F1101AIPW is an ultralow power microcontroller. It consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F1101AIPW features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs. Typical applications of the MSP430F1101AIPW include sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system. Stand alone RF sensor front end is another area of application. The I/O port inputs provide single slope A/D conversion capability on resistive sensors.

Parametrics

MSP430F1101AIPW absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg (unprogrammed device): -55 to 150℃; (5)Storage temperature, Tstg (programmed device): -40 to 85℃.

Features

MSP430F1101AIPW features: (1)Low Supply Voltage Range 1.8 V to 3.6 V; (2)Ultralow-Power Consumption; (3)Wake-Up From Standby Mode in less than 6 μs; (4)16-Bit RISC Architecture, 125 ns Instruction Cycle Time; (5)Basic Clock Module Configurations; (6)16-Bit Timer_A With Three Capture/Compare Registers; (7)On-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion; (8)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse.

Diagrams

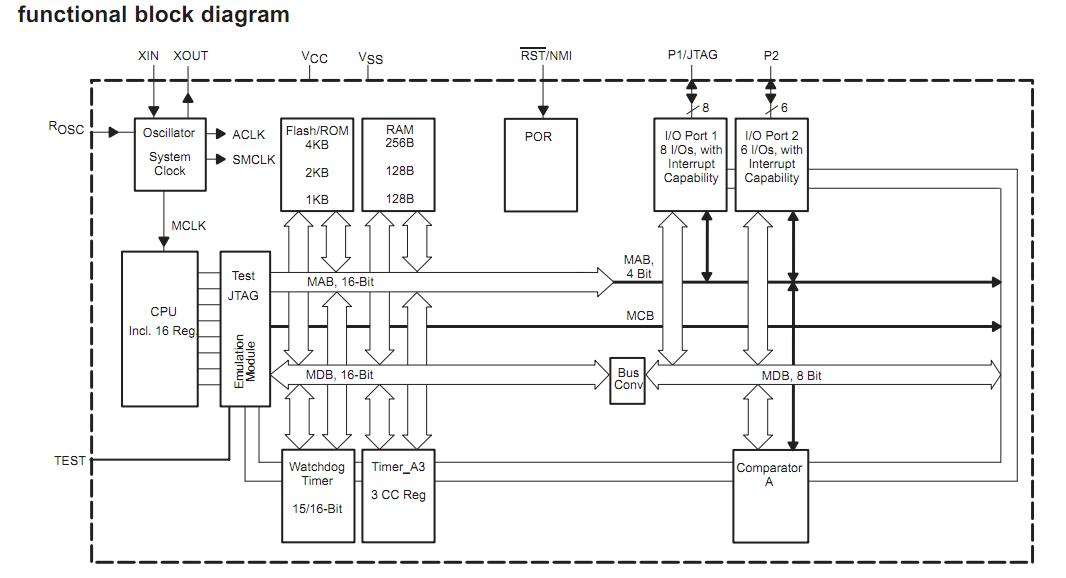

MSP430F1101AIPW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSP430F1101AIPW
MSP430F1101AIPW

Texas Instruments

16-bit Microcontrollers (MCU) 1kB Flash 128B RAM Comparator

Data Sheet

0-1: $1.28
1-10: $1.15
10-25: $1.03
25-100: $0.69
MSP430F1101AIPWR
MSP430F1101AIPWR

Texas Instruments

16-bit Microcontrollers (MCU) 1kB Flash 128B RAM Comparator

Data Sheet

0-1620: $0.64
1620-2000: $0.63
