MAX9502GEXK

MAX9502GEXK, small, low-power video amplifier, QFN, -0.3V to +4V, 168mW, 6dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.57~0.57 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
2500 ~ 2500 :	0.57 / Piece

PartNumber:: MAX9502GEXK

Brand:: Maxim Integrated Products - Maxim | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-16

From Other Seller

Part Number:MAX9502GEXK
US $0.57 - 0.57
Quantity:

piece

Product Summary

The MAX9502GEXK is a small, low-power video amplifier with integrated reconstruction filter. It operates from a supply voltage as low as 2.5V. The small size and the low minimum supply voltage make the MAX9502GEXK ideal for portable applications such as mobile phones, digital still cameras, and camcorders. The applications of the MAX9502GEXK include Mobile Phones/Smartphones, Digital Still Cameras, Portable Media Players, Camcorders.

Parametrics

MAX9502GEXK absolute maximum ratings: (1)VCC to GND: -0.3V to +4V; (2)SHDN, IN, OUT to GND: -0.3V to (VCC + 0.3V); (3)OUT Short-Circuit Duration to VCC, GND: Continuous; (4)Continuous Power Dissipation (TA = +70℃); (5)5-Pin SC70 (derate 3.1mW/℃ above +70℃): 247mW; (6)6-Pin μDFN (derate 2.1mW/℃ above +70℃): 168mW; (7)Operating Temperature Range: -40℃ to +85℃; (8)Junction Temperature: +150℃; (9)Storage Temperature Range: -65°C to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

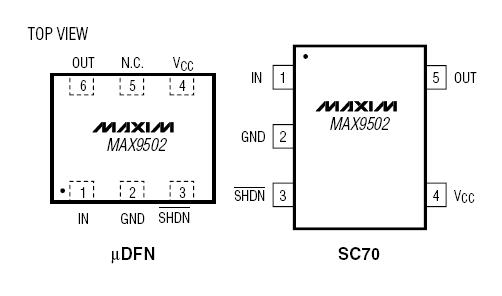

MAX9502GEXK features: (1)Tiny 6-Pin μDFN (1mm x 1.5mm x 0.8mm) and 5-Pin SC70 Packages; (2)DC-Coupled Input and Output Save Board Space; (3)4-Pole Chebyshev Filter; (4)5.5MHz Passband; (5)55dB Attenuation at 27MHz; (6)0.01μA Low-Current Shutdown Mode; (7)2.5V to 3.6V Single-Supply Operation; (8)Video Amplifier with Fixed Gains of +6dB (MAX9502G) or +12dB (MAX9502M).
