Product Summary
The MAX1137EUA is a low-power, 10-bit, multichannel analog-to-digital converter. It features internal track/hold (T/H), voltage reference, clock, and an I2C.-compatible 2-wire serial interface. The MAX1137EUA operates from a single supply of 2.7V to 3.6V and requires only 670μA at the maximum sampling rate of 94.4ksps. Supply current falls below 230μA for sampling rates under 46ksps. AutoShutdown powers down the devices between conversions, reducing supply current to less than 1μA at low throughput rates. The MAX1137EUA has four analog input channels each. The fully differential analog inputs are software configurable for unipolar or bipolar, and single ended or differential operation. The applications of the MAX1137EUA include Hand-Held Portable Applications, Medical Instruments, Battery-Powered Test Equipment, Solar-Powered Remote Systems, Received-Signal-Strength Indicators, and System Supervision.
Parametrics
MAX1137EUA absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)AIN0–AIN11, REF to GND: -0.3V to the lower of (VDD + 0.3V) and 6V; (3)SDA, SCL to GND: -0.3V to +6V; (4)Maximum Current Into Any Pin: ±50mA; (5)Continuous Power Dissipation (TA = +70℃) 8-Pin μMAX (derate 4.5mW/℃ above +70℃): 362mW; (6)16-Pin QSOP (derate 8.3mW/℃ above +70℃): 666.7mW; (7)Operating Temperature Range: -40℃ to +85℃; (8)Junction Temperature: +150℃; (9)Storage Temperature Range: -60℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX1137EUA features: (1)High-Speed I2C-Compatible Serial Interface; (2)Single-Supply: 2.7V to 3.6V; (3)Internal Reference: 2.048V; (4)External Reference: 1V to VDD; (5)Internal Clock; (6)4-Channel Single-Ended or 2-Channel Fully Differential (MAX1136/MAX1137); (7)Internal FIFO with Channel-Scan Mode; (8)Low Power; (9)Software-Configurable Unipolar/Bipolar; (10)Small Packages: 8-Pin μMAX (MAX1136/MAX1137).

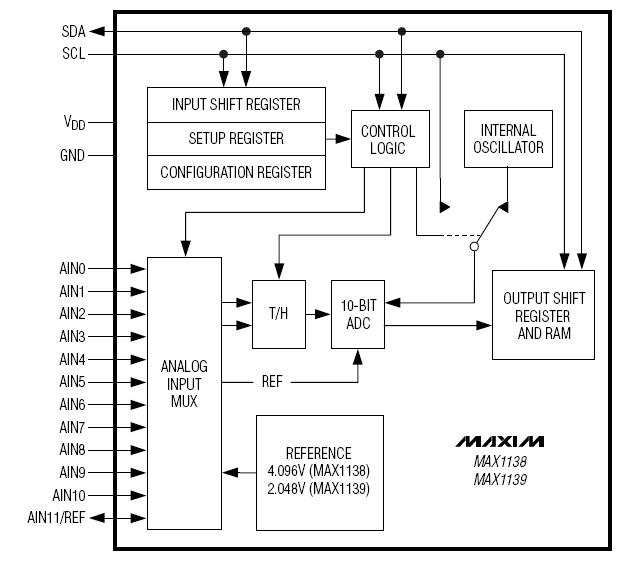

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX1137EUA+T |
Maxim Integrated Products |
ADC (A/D Converters) 10-Bit 4Ch 94.4ksps 3.6V Precision ADC |
Data Sheet |
|
|
|||||||||||||
MAX1137EUA-T |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX1137EUA+ |
Maxim Integrated Products |
ADC (A/D Converters) 10-Bit 4Ch 94.4ksps 3.6V Precision ADC |
Data Sheet |
|
|
|||||||||||||
MAX1137EUA |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
