Product Summary
The LTC6803HG-2#3ZZPBF is a Multicell Battery Stack Monitor. It includes a 12-bit ADC, a precision voltage reference, a high voltage input multiplexer and a serial interface. The LTC6803HG-2#3ZZPBF can measure up to 12 series connected battery cells or supercapacitors. It can be stacked to measure the voltage of each cell in a long battery string. The LTC6803HG-2#3ZZPBF connects the bottom of the stack to V– internally. It is pin compatible with the LTC6802-2, providing a drop-in upgrade. The LTC6803HG-2#3ZZPBF separates the bottom of the stack from V–, improving cell 1 measurement accuracy. The applications of the LTC6803HG-2#3ZZPBF include Electric and Hybrid Electric Vehicles, High Power Portable Equipment, Backup Battery Systems, Electric Bicycles, Motorcycles, Scooters.
Parametrics
LTC6803HG-2#3ZZPBF absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 75V; (2)Input Voltage (Relative to V–) C0: –0.3V to 8V; (3)Voltage Between Inputs C8 to C4:–0.3V to 25V; (4)Operating Temperature Range: -40 to 125℃; (5)Specified Temperature Range: -40 to 125℃; (6)Junction Temperature: 150℃; (7)Storage Temperature Range: –65 to 150℃.
Features
LTC6803HG-2#3ZZPBF features: (1)Measures Up to 12 Battery Cells in Series; (2)Stackable Architecture; (3)Supports Multiple Battery Chemistries and Supercapacitors; (4)Individually Addressable Serial Interface; (5)0.25% Maximum Total Measurement Error; (6)Engineered for ISO26262 Compliant Systems; (7)13ms to Measure All Cells in a System; (8)Passive Cell Balancing: Integrated Cell Balancing MOSFETs, Ability to Drive External Balancing MOSFETs; (9)Onboard Temperature Sensor and Thermistor Inputs; (10)1MHz Serial Interface with Packet Error Checking; (11)Safe with Random Connection of Cells; (12)Built-In Self Tests; (13)Delta-Sigma Converter With Built-In Noise Filter; (14)Open-Wire Connection Fault Detection; (15)12μA Standby Mode Supply Current; (16)High EMI Immunity; (17)44-Lead SSOP Package.

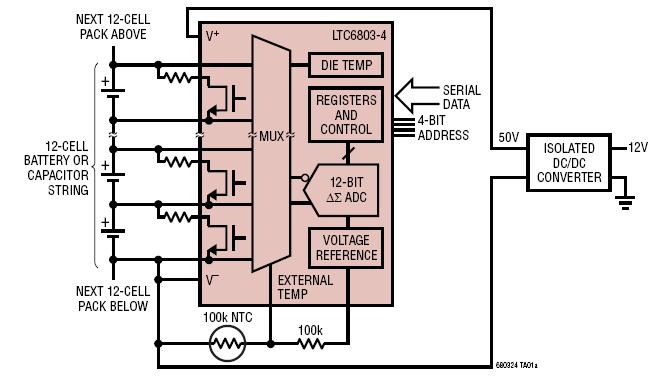

Diagrams
