Product Summary
The LQW18AN27NG00D is an air core chip coil. The applications of the LQW18AN27NG00D include High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, etc, Mobile phones such as GSM, CDMA, PDC, etc, Bluetooth, W-LAN, High frequency circuits in general.
Parametrics
LQW18AN27NG00D absolute maximum ratings: (1)Inductance: 27±2%; (2)Test Frequency: 100MHz; (3)Rated Current: 440mA; (4)DC Resistance: 0.21ohm max; (5)Q: 40 minutes; (6)Self Resonance Frequency (min.): 3700GHz; (7)EIA: 0603.
Features
LQW18AN27NG00D features: (1)Broad range of inductance (2.2nH to 470nH) with E24 step line up; (2)Horizontal wound structure enables tight inductance tolerance (+-0.2nH, +-2%). Stable circuit operation is possible; (3)The subminiature dimensions (1.6x0.8mm) allow high density mounting; (4)The high self resonant frequency realizes high Q value and stable inductance at high frequency; (5)Low DC resistance design is ideal for low loss, high output and low power consumption; (6)Resin-coated surface enables excellent mounting.

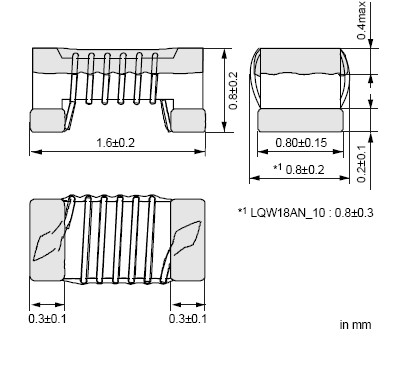

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQW18AN27NG00D |
Murata |
RF Inductors 0603 27nH |
Data Sheet |
|
|
||||||||||||
