Product Summary

The LM3S1651-IQC80-C3 is a microcontroller.

Parametrics

LM3S1651-IQC80-C3 absolute maximum ratings: (1)VDD VDD supply voltage: 0 to 4 V; (2)VDDA VDDA supply voltage: 0 to 4 V; (3)VBAT VBAT battery supply voltage: 0 to 4 V; (4)Input voltage: -0.3 to 5.5 V; (5)VIN_GPIO Input voltage for PB0 and PB1 when configured as GPIO: -0.3 VDD + 0.3 V; (6)IGPIOMAX Maximum current per output pin: 25mA; (7)Maximum input voltage on a non-power pin when the micro-controller is unpowered: 300mV.

Features

LM3S1651-IQC80-C3 features: (1)ARM Cortex-M3 Processor Core; (2)High Performance: 80-MHz operation; 100 DMIPS performance; (3)128 KB single-cycle Flash memory; (4)32 KB single-cycle SRAM; (5)Internal ROM loaded with StellarisWareR software; (6)Advanced Communication Interfaces: UART, SSI, I2C, I2S; (7)System Integration: general-purpose timers, watchdog timers, DMA, general-purpose I/Os; (8)Advanced motion control using PWMs, fault inputs, and quadrature encoder inputs; (9)Analog support: analog and digital comparators, Analog-to-Digital Converters (ADC), on-chip voltage regulator; (10)JTAG and ARM Serial Wire Debug (SWD); (11)100-pin LQFP package; (12)108-ball BGA package; (13)Industrial (-40℃ to 85℃) temperature range.

Diagrams

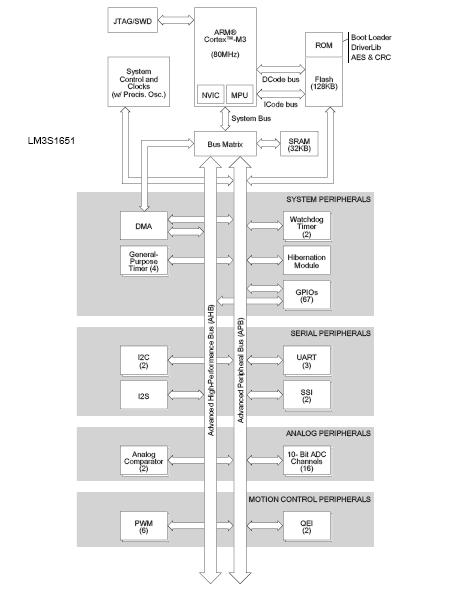

LM3S1651-IQC80-C3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM3S1651-IQC80-C3
LM3S1651-IQC80-C3
Texas Instruments
ARM Microcontrollers (MCU) Stellaris MCU
Data Sheet
Negotiable
LM3S1651-IQC80-C3T
LM3S1651-IQC80-C3T
Texas Instruments
ARM Microcontrollers (MCU) Stellaris MCU
Data Sheet
Negotiable
