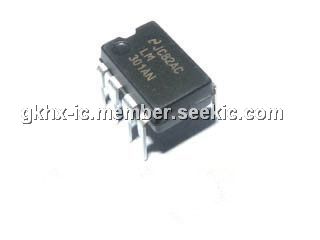

Product Summary

The LM301AN is a general purpose operational amplifier which features improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current. The LM301AN offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30pF capacitor. The LM301AN has advantages over internally compensated amplifier in that the frequency compensation can be tailored to the particular application. For example, in low frequency circuits it can be overcompensated for increased stability margin.

Parametrics

LM301AN absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: ±15V; (4)Output Short Circuit Duration: Continuous; (5)Operating Ambient Temp. Range: 0℃ to +70℃.

Features

LM301AN features: (1)Offset voltage 3 mV maximum over temperature; (2)Input current 100nA maximum over temperature; (3)Offset current 20nA maximum over temperature; (4)Guaranteed drift characteristics; (5)Offsets guaranteed over entire common mode and supply voltage ranges; (6)Slew rate of 10V/μs as a summing amplifier.

Diagrams

LM301AN Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM301AN
LM301AN
STMicroelectronics
Operational Amplifiers - Op Amps Single General Purp
Data Sheet
0-1: $0.49
1-10: $0.43
10-100: $0.34
100-250: $0.30
LM301AN/NOPB
LM301AN/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1: $0.62
1-25: $0.49
25-100: $0.44
100-250: $0.38
LM301ANG
LM301ANG
ON Semiconductor
Operational Amplifiers - Op Amps 3-32V dual improved VIO Commercial Temp
Data Sheet
0-1: $0.37
1-25: $0.33
25-100: $0.24
100-500: $0.21
