Product Summary

The IRFL4315 is a HEXFET Power MOSFET.

Parametrics

IRFL4315 absolute maximum ratings: (1)ID @ TA = 25℃ Continuous Drain Current, VGS @ 10V: 2.6A; (2)ID @ TA = 70℃ Continuous Drain Current, VGS @ 10V: 2.1A; (3)IDM Pulsed Drain Current: 21A; (4)PD @TA = 25°C Power Dissipation: 2.8W; (5)Linear Derating Factor: 0.02 W/℃; (6)VGS Gate-to-Source Voltage ±30V; (7)dv/dt Peak Diode Recovery dv/dt: 6.3V/ns; (8)TJ Operating Junction and TSTG Storage Temperature Range: -55℃ to + 150℃; (9)Soldering Temperature, for 10 seconds 300℃ (1.6mm from case ).

Features

IRFL4315 features: (1)Low Gate to Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001); (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

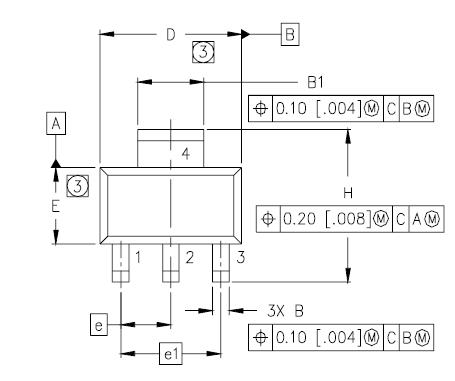

IRFL4315 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFL4315
IRFL4315


MOSFET N-CH 150V 2.6A SOT223

Data Sheet

0-2560: $3.75
IRFL4315PBF
IRFL4315PBF

International Rectifier

MOSFET

Data Sheet

0-1: $0.74
1-25: $0.43
25-100: $0.27
100-250: $0.25
IRFL4315TRPBF
IRFL4315TRPBF

International Rectifier

MOSFET MOSFT 150V 2.6A 185mOhm 12nC

Data Sheet

0-1: $0.74
1-25: $0.43
25-100: $0.27
100-250: $0.25
