Product Summary
The ICM7556IPDZ is a dual general purpose RC timer capable of generating accurate time delays or frequencies. The primary feature is an extremely low supply current, making ICM7556IPDZ ideal for battery-powered systems. Additional features include low THRESHOLD, TRIGGER, and RESET currents, a wide operating supply voltage range, and improved performance at high frequencies. And the ICM7556IPDZ is used in pulse generator, precision timing, and time delay generation and so on.
Parametrics
ICM7556IPDZ absolute maximum ratings: (1)Supply Voltage:+18 V; (2)Output Current:100mA; (3)Power Dissipation:200mA; (4)Operating Temperature Range:-55℃ to +125℃; (5)Storage Temperature:-65℃ to +150℃; (6)Lead Temperature (Soldering 60 Seconds): +300℃.
Features
ICM7556IPDZ features: (1) Improved 2nd Source; (2)Wide Supply Voltage Range: 2-18V; (3)No Crowbarrlng of Supply During Output Transition; (4)Adjustable Duty Cycle; (5)Low THRESHOLD, TRIGGER and RESET Currents; (6)TTL Compatible; (7)Monolithic, Low Power CMOS Design.

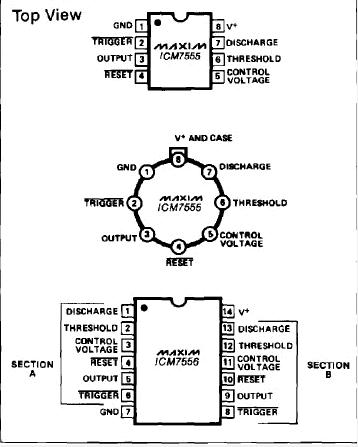

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICM7556IPDZ |
Intersil |
Timers & Support Products TIMER 2X GEN PUR CMOS 14PDIP IND |
Data Sheet |
|
|
||||||||||||
