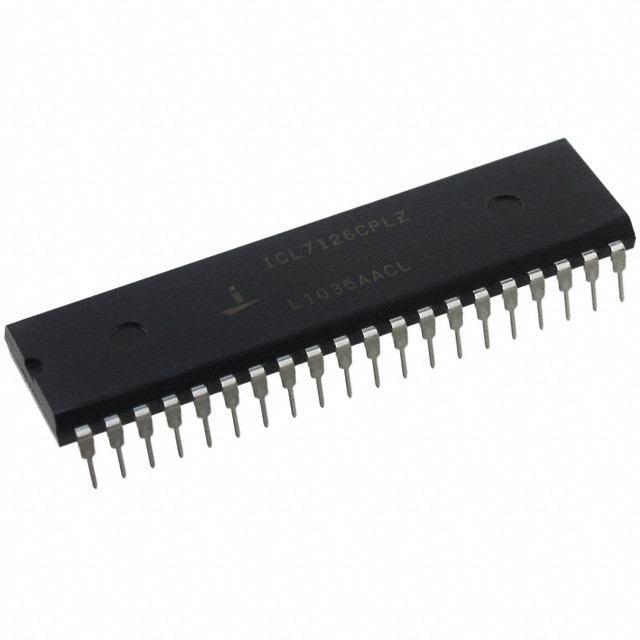

ICL7126CPLZ

ICL7126CPLZ, high performance, very low power, 3 1/2-digit, A/D converter, DIP, 15V, 40pF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 25 :	3.20 / Piece

PartNumber:: ICL7126CPLZ

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-18

From Other Seller

Part Number:ICL7126CPLZ
US $3.20 - 3.20
Quantity:

piece

Product Summary

The ICL7126CPLZ is a high performance, very low power 3 1/2-digit, A/D converter. All the necessary active devices are contained on a single CMOS IC, including seven segment decoders, display drivers, reference, and clock. The ICL7126CPLZ is designed to interface with a liquid crystal display (LCD) and includes a backplane drive. The supply current of 100μA is ideally suited for 9V battery operation. The ICL7126CPLZ can be used as a plug-in replacement for the ICL7106 in a wide variety of applications, changing only the passive components.

Parametrics

ICL7126CPLZ absolute maximum ratings: (1)Supply Voltage V+ to V-: 15V; (2)Analog Input Voltage (Either Input) (Note 1): V+ to V-; (3)Reference Input Voltage (Either Input): V+ to V-; (4)Clock Input: TEST to V+; (5)Temperature Range: 0 to 70℃.

Features

ICL7126CPLZ features: (1)8,000 Hours Typical 9V Battery Life; (2)Guaranteed Zero Reading for 0V Input on All Scales; (3)True Polarity at Zero for Precise Null Detection; (4)1pA Typical Input Current; (5)True Differential Input and Reference; (6)Direct LCD Display Drive - No External Components Required; (7)Pin Compatible With the ICL7106; (8)Low Noise - Less Than 15μVP-P; (9)On-Chip Clock and Reference; (10)Low Power Dissipation Guaranteed Less Than 1mW; (11)No Additional Active Circuits Required; (12)Pb-Free Available (RoHS Compliant).
