ICL3232EIBNZ-T

Product Summary

The ICL3232EIBNZ-T is a 3.0V to 5.5V powered RS-232 transmitter/receiver which meets ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Additionally, the ICL3232EIBNZ-T provides ±15kV ESD protection on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications of the ICL3232EIBNZ-T are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and automatic powerdown functions, reduce the standby supply current to a 1μA trickle. The ICL3232EIBNZ-T is fully compatible with 3.3V-only systems, mixed 3.3V and 5.0V systems, and 5.0V-only systems.

Parametrics

ICL3232EIBNZ-T absolute maximum ratings: (1)VCC to GND: -0.3V to 6V; (2)V+ to GND: -0.3V to 7V; (3)V- to GND: +0.3V to -7V; (4)V+ to V-: 14V; (5)Input Voltages, TIN, FORCEOFF, FORCEON, EN, SHDN: -0.3V to 6V; RIN : ±25V; (6)Output Voltages, TOUT: ±13.2V; ROUT, INVALID: -0.3V to VCC +0.3V; (7)Short Circuit Duration,TOUT: Continuous.

Features

ICL3232EIBNZ-T features: (1)ESD Protection for RS-232 I/O Pins to ?5kV (IEC61000); (2)Drop in Replacements for MAX3221E, MAX3222E, MAX3223E, MAX3232E, MAX3241E, MAX3243E, SP3243E; (3)ICL3221E is a Low Power, Pin Compatible Upgrade for 5V MAX221E; (4)ICL3222E is a Low Power, Pin Compatible Upgrade for 5V MAX242E, and SP312E; (5)ICL3232E is a Low Power Upgrade for HIN232E, ICL232 and Pin Compatible Competitor Devices; (6)RS-232 Compatible with VCC = 2.7V; (7)Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V; (8)Latch-Up Free; (9)On-Chip Voltage Converters Require Only Four External 0.1μH Capacitors; (10)Manual and Automatic Powerdown Features; (11)Guaranteed Mouse Driveability; (12)Receiver Hysteresis For Improved Noise Immunity; (13)Guaranteed Minimum Data Rate: 250kbps; (14)Wide Power Supply Range: Single +3V to +5.5V; (15)Low Supply Current in Powerdown State: 1μA; (16)Pb-Free Plus Anneal Available (RoHS Compliant).

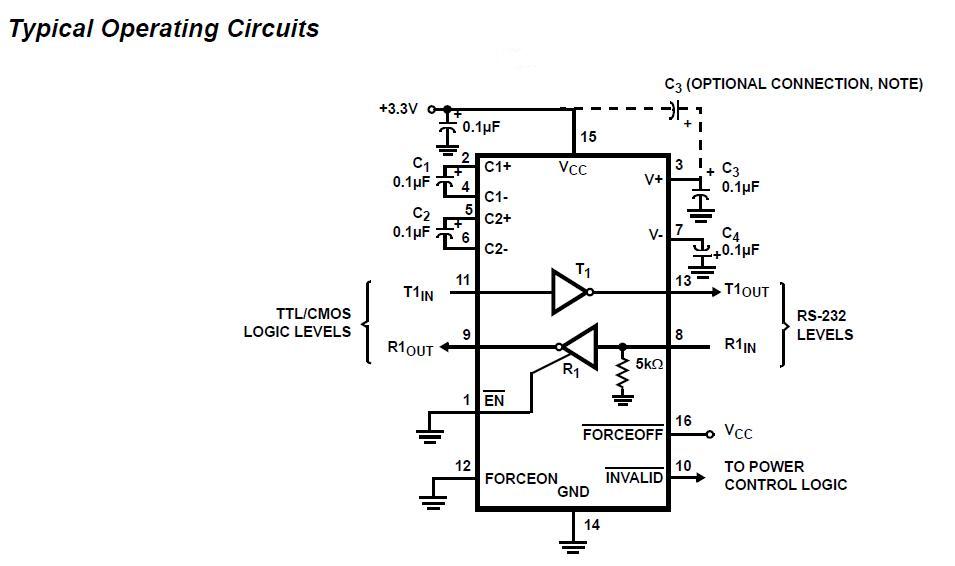

Diagrams
