Product Summary
The HIN211IA is a +5V Powered RS-232 Transmitter/Receiver with 0.1Microfarad External Capacitors. The HIN211IA interfaces circuits meet all ElA RS-232E and V.28 specifications, and is particularly suited for those applications where ±12V is not available. It requires a single +5V power supply (except HIN201) and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The HIN211IA offers a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table). The applications of the HIN211IA include Any System Requiring RS-232 Communications Port, Computer - Portable, Mainframe, Laptop, Peripheral - Printers and Terminals, Instrumentation, Modems.
Parametrics
HIN211IA absolute maximum ratings: (1)VCC to Ground: (GND -0.3V) <VCC < 6V; (2)V+ to Ground: (VCC -0.3V)<V+ <12V; (3)V- to Ground: -12V <V- <(GND +0.3V); (4)Input Voltages TIN: (V- -0.3V) <VIN <(V+ +0.3V); (5)RIN: ±30V; (6)Output Voltages TOUT: (V- -0.3V) <VTXOUT <(V+ +0.3V); (7)ROUT: (GND -0.3V)< VRXOUT <(V+ +0.3V); (8)Short Circuit Duration; (9) TOUT: Continuous; (10) ROUT: Continuous; (11) ESD Classification: Class 1.
Features
HIN211IA features: (1)Meets All RS-232E and V.28 Specifications; (2)HIN203 and HIN205 Require No External Capacitors; (3)Requires Only 0.1μF or Greater External Capacitors; (4)High Data Rate: 120kbit/s; (5)Two Receivers Active in Shutdown Mode (HIN213); (6)Requires Only Single +5V Power Supply: (+5V and +12V - HIN201); (7)Onboard Voltage Doubler/Inverter; (8)Low Power Consumption (Typ): 5mA; (9)Low Power Shutdown Function (Typ): 1μA; (10)Three-State TTL/CMOS Receiver Outputs; (11)Multiple Drivers; (12)±10V Output Swing for +5V input; (13)300Ω Power-Off Source Impedance; (14)Output Current Limiting; (15)TTL/CMOS Compatible; (16)30V/μs Maximum Slew Rate; (17)Multiple Receivers; (18)±30V Input Voltage Range; (19)3kΩ to 7kΩ Input Impedance; (20)0.5V Hysteresis to Improve Noise Rejection.

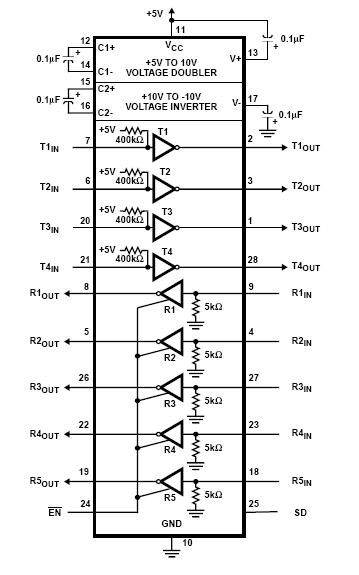

Diagrams
