Product Summary

The HEF4030BT PB is a Quadruple exclusive-OR gate. The HEF4030BT PB provides the positive quadruple exclusive-OR function. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance.

Parametrics

HEF4030BT PB absolute maximum ratings: (1)Propagation delays In → On HIGH to LOW: 35ns type @ VDD =10V; (2)Propagation delays In → On LOW to HIGH: 30ns type @ VDD =10V; (3) Output transition times HIGH to LOW: 30ns type @ VDD =10V; (4) Output transition times LOW to HIGH: 30ns type @ VDD =10V.

Features

HEF4030BT PB features: (1)Propagation delays In → On HIGH to LOW: 85ns type @ VDD =5V; (2)Propagation delays In → On LOW to HIGH: 75ns type @ VDD =5V; (3)Output transition times HIGH to LOW: 60ns type @ VDD =5V; (4)Output transition times LOW to HIGH: 60ns type @ VDD =5V.

Diagrams

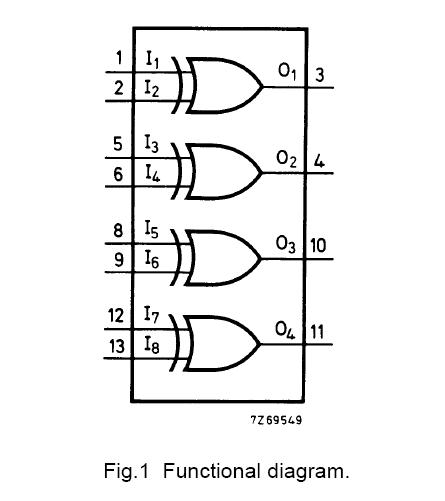

HEF4030BT PB block diagram
