Product Summary

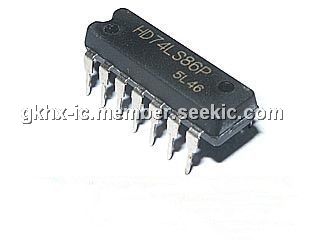

The HD74LS86P is a Quadruple 2-input exclusive-OP Gate.
Parametrics
HD74LS86P absolute maximum ratings: (1)Supply voltage VCC: 7 V; (2)Input voltage VIN: 7 V; (3)Power dissipation PT: 400 mW; (4)Storage temperature Tstg: –65 to +150℃.
Features
HD74LS86P electrical characteristics: (1)VIH: 2.0 min V; (2)VIL: 0.8 max V; (3)VOH :2.7 min V; (4)VOL: 0.4 max V when IOL=4mA; (5)VOL: 0.5 max V when IOL=8mA; (6)IIH: 40 max μA; (7)IIL: –0.8 max mA; (8)II : 0.2 max mA; (9)IOS: –20 to –100 mA; (10)ICC: 6.1 typ, 10 max mA; (11)VIK:–1.5 max V.

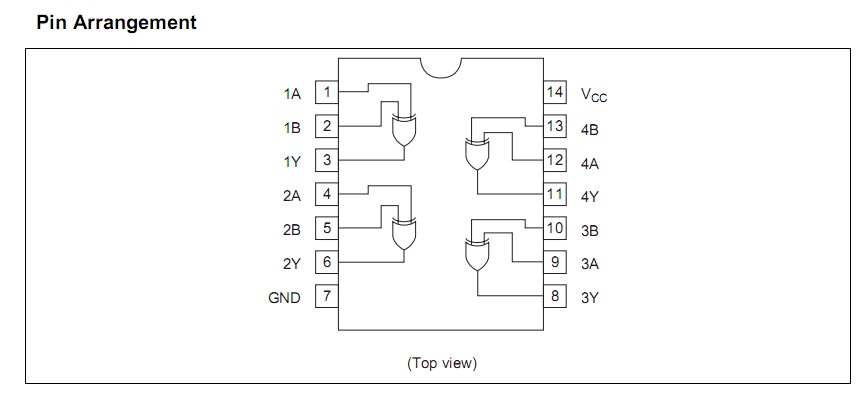

Diagrams
 |
