Product Summary

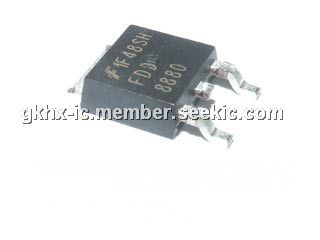

The FDD8880 is an N-Channel PowerTrench MOSFET. The FDD8880 has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS (ON) and fast switching speed. The application of the FDD8880 is DC/DC converters.

Parametrics

FDD8880 absolute maximum ratings: (1)VDSS Drain to Source Voltage: 30V; (2)VGS Gate to Source Voltage:±20V; (3)ID Drain Current Continuous (TC = 25℃, V GS = 10V) (Note 1):58A; (4)Continuous (TC = 25℃, V GS = 4.5V) (Note 1): 51A; (5)Continuous (Tamb = 25℃, VGS = 10V, with RθJA = 52℃/W): 13A; (6)Pulsed Figure: 4A; (7)EAS Single Pulse Avalanche Energy (Note 2): 53mJ; (8)PD Power dissipation: 55W; (9)Derate above 25℃: 0.37W/℃; (10)TJ, TSTG Operating and Storage Temperature: -55 to 175℃.

Features

FDD8880 features: (1) rDS (ON) = 9mΩ, VGS = 10V, ID = 35A; (2) rDS (ON) = 12mΩ, VGS = 4.5V, ID = 35A; (3) High performance trench technology for extremely low rDS (ON); (4) Low gate charge; (5) High power and current handling capability.

Diagrams

FDD8880 block diagram
