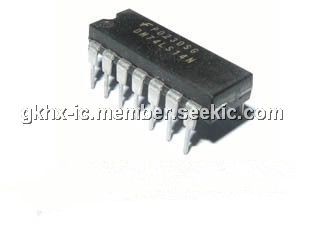

Product Summary
The DM74LS14N is a Hex Inverter with Schmitt Trigger Inputs. The DM74LS14N contains six independent gates each of which performs the logic INVERT function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output.
Parametrics
DM74LS14N absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Operating Free Air Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: -65℃ to +150℃.
Features
DM74LS14N features: (1)VCC Supply Voltage: 4.75 to 5.25V; (2)VT+ Positive-Going Input Threshold Voltage (Note 2): 1.4 to 1.9V; (3)VT- Negative-Going Input Threshold Voltage (Note 2): 0.5 to 1V; (4)HYS Input Hysteresis (Note 2):0.8V; (5)IOH HIGH Level Output Current: -0.4mA; (6)IOL LOW Level Output Current: 8mA; (7)TA Free Air Operating Temperature: 0 to 70℃.

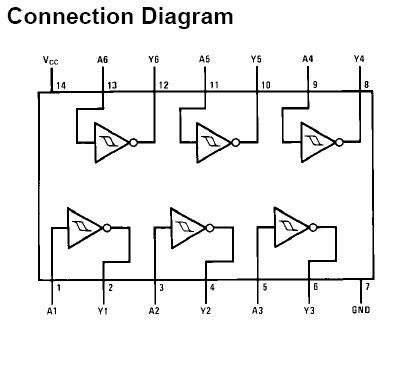

Diagrams
