Product Summary
The DCP022415DU is a 2W, isolated, unregulated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the DCP022415DU provides extra features such as output disable and synchronization of switching frequencies. The use of a highly integrated package design results in highly reliable products with power densities of 79W/in 3 (4.8W/cm 3) for DIP-14, and 106W/in 3(6.5W/cm 3) for SO-28. This combination of features and small size makes the DCP02 suitable for a wide range of applications. The applications of the DCP022415DU are Point-of-Use Power Conversion, Ground Loop Elimination, Data Acquisition, Industrial Control and Instrumentation, Test Equipment.
Parametrics
DCP022415DU absolute maximum ratings: (1)Input Voltage: 5V input models:7V, 12V input models:15V, 15V input models:18V, 24V input models:29V; (2)Storage temperature range:-60℃ to +125℃.
Features
DCP022415DU features: (1)Up To 89% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)SO-28 Power Density of 106W/in 3(6.5W/cm 3); (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC 14-Pin and SO-28 Packages.

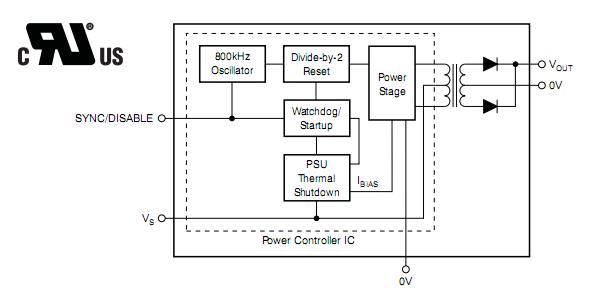

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DCP022415DU |
Texas Instruments |
DC/DC Converters Mini 2W Iso Unreg DC/DC Converter |
Data Sheet |
|
|
||||||||||||
|
DCP022415DU/1K |
Texas Instruments |
DC/DC Converters Mini 2W Iso Unreg DC/DC Converter |
Data Sheet |
|
|
||||||||||||
