Product Summary
The DAC2904Y/1K is a monolithic, 14-bit, dual-channel, high-speed Digital-to-Analog Converter (DAC). The DAC2904Y/1K is optimized to provide high dynamic performance while dissipating only 310mW. The applications of the DAC2904Y/1K include communications, medical/test instrumentation, arbitrary waveform generators (ARB), direct digital synthesis (DDS).
Parametrics
DAC2904Y/1K absolute maximum ratings: (1)+VA to AGND: –0.3 to +6 V; (2)+VD to DGND: –0.3 to +6 V; (3)AGND to DGND: –0.3 to +0.3 V; (4)+VA to +VD: –6 to +6 V; (5)CLK, PD to DGND: –0.3 to VD +0.3 V; (6)D0–D9 to DGND: –0.3 to VD +0.3 V; (7)IOUT, I OUT to AGND: –1 to VA + 0.3 V; (8)BW, BYP to AGND: –0.3 to VA + 0.3 V; (9)REFIN, FSA to AGND: –0.3 to VA + 0.3 V; (10)INT/EXT to AGND: –0.3 to VA + 0.3 V; (11)Junction Temperature: +150℃; (12)Case Temperature: +100℃; (13)Storage Temperature: +125℃.
Features
DAC2904Y/1K features: (1)125MSPS update rate; (2)single supply: +3.3V or +5V; (3)high SFDR: 78dB at fOUT = 10MHz; (4)low glitch: 2pV-s; (5)low power: 310mW; (6)internal reference; (7)power-down mode: 23mW.

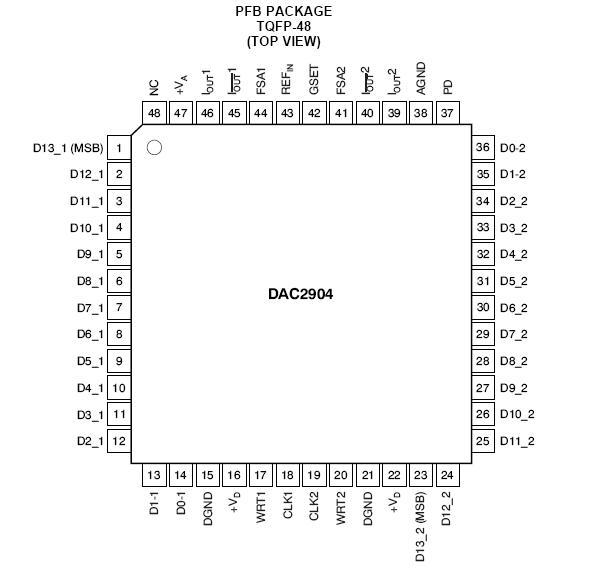

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DAC2904Y/1K |
Texas Instruments |
DAC (D/A Converters) 14 Bit 125 MSPS Dual Communications |
Data Sheet |
|
|
||||||||
|
DAC2904Y/1KG4 |
Texas Instruments |
DAC (D/A Converters) 14 Bit 125 MSPS Dual Communications |
Data Sheet |
|
|
||||||||
