Product Summary

The CMPSH-3S TR is a Silicon Schottky diode designed for surface mount fast switching applications requiring a low forward voltage drop.

Parametrics

CMPSH-3S TR absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 30V; (2)Continuous Forward Current IF: 100mA; (3)Peak Repetitive Forward Current IFRM: 350mA; (4)Peak Forward Surge Current, tp=10ms IFSM: 750mA; (5)Power Dissipation PD: 350mW; (6)Operating and Storage Junction Temperature TJ, Tstg: -65 to +150℃; (7)Thermal Resistance θJA: 357℃/W.

Features

CMPSH-3S TR features: (1)IR VR=25V: 500nA; (2)IR VR=25V, TA=100℃: 100μA; (3)BVR IR=100μA: 30V; (4)VF IF=2.0mA: 0.33V; (5)VF IF=15mA: 0.45V; (6)VF IF=100mA: 1.00V; (7)CT VR=1.0V, f=1.0MHz: 7.0pF; (8)trr IF=IR=10mA, Irr=1.0mA, RL=100Ω: 5.0ns.

Diagrams

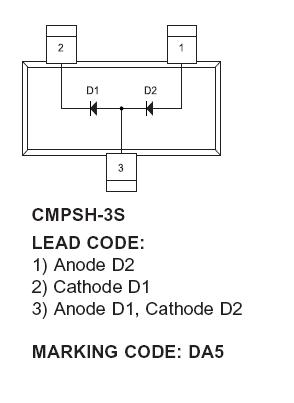

CMPSH-3S TR Pin Configuration
