Product Summary
The CD74HCT365E is a High Speed CMOS Logic Hex Buffer/Line Driver, Three-State Non-Inverting and Inverting. The CD74HCT365E has high drive current outputs which enables high speed operation even when driving large bus capacitances. The CD74HCT365E possess the low power dissipation of CMOS circuitry, yet have speeds comparable to low power Schottky TTL circuits. Both circuits are capable of driving up to 15 low power Schottky inputs.
Parametrics
CD74HCT365E absolute maximum ratings: (1)DC Supply Voltage, VCC: -0.5V to 7V; (2)DC Input Diode Current, IIK For VI＜-0.5V or VI＞VCC + 0.5V: ±20mA; (3)DC Output Diode Current, IOK For VO＜-0.5V or VO＞VCC + 0.5V:±20mA; (4)DC Drain Current, per Output, IO For -0.5V＜VO＜VCC + 0.5V:±35mA; (5)DC Output Source or Sink Current per Output Pin, IO For VO＞ -0.5V or VO＜VCC + 0.5V: ±25mA; (6)DC VCC or Ground Current, ICC: ±50mA.
Features
CD74HCT365E features: (1)Buffered Inputs; (2)High Current Bus Driver Outputs; (3)Typical Propagation Delay tPLH, tPHL = 8ns at VCC = 5V, CL = 15pF, TA = 25℃; (4)Fanout (Over Temperature Range); (5)Standard Outputs: 10 LSTTL Loads; (6)Bus Driver Outputs: 15 LSTTL Loads; (7)Wide Operating Temperature Range: -55℃ to 125℃; (8)Balanced Propagation Delay and Transition Times; (9)Significant Power Reduction Compared to LSTTL Logic ICs; (10)HC Types: 2V to 6V Operation; (11)High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V; (12)HCT Types: 4.5V to 5.5V Operation; (13)Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min): CMOS Input Compatibility, Il≤ 1μA at VOL, VOH.

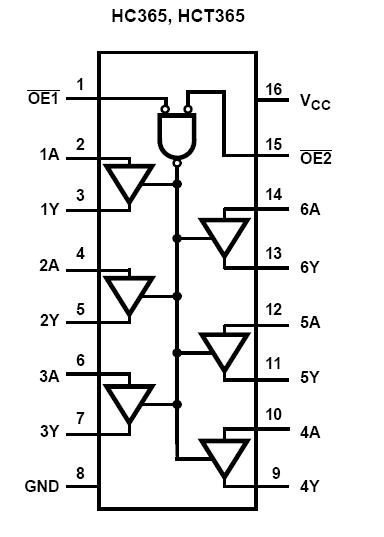

Diagrams
