Product Summary
The CD4093BM96 is a CMOS quad 2-input NAND schmitt trigger which consists of four schmitt trigger circuits. Eacj circuit functions as a two input NAND gate with schmitt trigger action on both inputs. The gate switches at different points for positive and negative going signals.
Parametrics
CD4093BM96 absolute maximum ratings: (1)DC supply voltage range, (VDD) voltage referenced to Vss terminal: -0.5V to 20V; (2)input voltage range, all inputs: -0.5V to Vdd+0.5V; (3)DC input current, any one input: ±10mA; (4) package thermal impedance: 80℃/W for E package; 86℃/W for M package; 76℃/W for NS package; (5)device dissipation per output transistor : 100mW; (6)operating temperature range: -55℃ to 125℃; (7)storage temperature range: -65℃ to 150℃; (8)lead temperature: 265℃.
Features
CD4093BM96 features: (1)schmitt-trigger action on each input with no external components; (2)hysteresis voltage typically 0.9 V at VDD=5V and 1.3V at VDD=10V; (3)noise immunity greater than 50%; (4)no limit on input rise and fall times; (5)standardized,symmeterical output characteristics; (6)100% tested for quiescent current at 20V; (7)maximum input current of 1μA at 18V over full package-temperature range; (8)5V,10V and 15V parametric ratings; (9)meets all requirements of JEDEC.

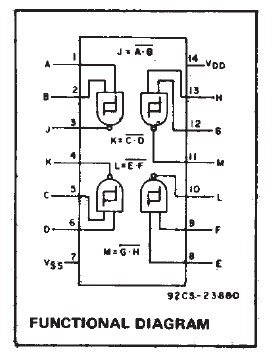

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4093BM96 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) CMOS Quad 2-Input NAND Schmitt Triggrs |
Data Sheet |
|
|
||||||||||||
|
CD4093BM96E4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) CMOS Quad 2-Input NAND Schmitt Triggrs |
Data Sheet |
|
|
||||||||||||
|
CD4093BM96G4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) CMOS Quad 2-Input NAND Schmitt Triggrs |
Data Sheet |
|
|
||||||||||||
