Product Summary

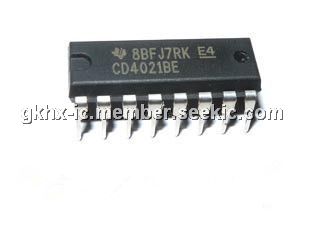

The CD4021BE is a CMOS 8-stage static shift register. It has common clock and parallel/serial control inputs, a single data input, and individual parallel "JAM" inputs to each register stage. Each register stage is a D-type, master-slave flip-flop. The CD4021BE is supplied in 16-lead dual-in-line plastic package. The applications of the CD4021BE include parallel input/serial output data queueing, parallel to serial data conversion and general purpose register.
Parametrics
CD4021BE absolute maximum ratings: (1)DC supply voltage range: -0.5V to +20V; (2)Input voltage range, all inputs: -0.5V to VDD+0.5V; (3)DC input current, any one input: ±10mA; (4)Power Dissipation per package: 500mW; (5)Device dissipation per output transistor: 100mW; (6)Operating temperature range: -55℃ to +125℃; (7)Storage Temperature range: -65℃ to +150℃; (8)Lead temperature: 265℃.
Features
CD4021BE features: (1)Medium speed operation: 12MHz (typ.) clock rate at VDD-VSS =10V; (2)Fully static operation; (3)8 master slave flip-flops plus output buffering and control gating; (4)100% tested for quiescent current at 20V; (5)Maximum input current of 1μA at 18V over full package temperature range: 100nA at 18V and 25℃; (6)Noise margin; (7)Standardized, symmetrical output characteristics; (8)5V, 10V and 15V parametric ratings.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4021BE |
Texas Instruments |
Counter Shift Registers 8-Bit Shift |
Data Sheet |
|
|
||||||||||||
|
CD4021BEE4 |
Texas Instruments |
Counter Shift Registers 8-Bit Shift |
Data Sheet |
|
|
||||||||||||
