Product Summary
The CC1070 is a true single-chip UHF transmitter designed for very low power and very low voltage wireless applications. The CC1070 is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 to 470 and 804 to 940 MHz range. The applications of the CC1070 include Narrowband low power UHF wireless data transmitters, 402 / 424 / 426 / 429 / 433 / 447 / 449/469 / 868 and 915 MHz ISM/SRD band systems, TPMS-Tire Pressure Monitoring Systems.
Parametrics
CC1070 absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0V; (2)Voltage on any pin: -0.3 to VDD+0.3, max 5.0V; (3)Storage temperature range -50 to 150℃; (4)Package body temperature: 260℃; (5)Humidity non-condensing: 5 to 85%; (6)ESD: 500V.
Features
CC1070 features: (1)True single chip UHF RF transmitter; (2)Frequency range 402 to 470 MHz and 804 to 940 MHz; (3)Programmable output power; (4)Low supply voltage (2.3 to 3.6 V); (5)Very few external components required; (6)Small size (QFN 20 package); (7)Pb-free package; (8)Data rate up to 153.6 kBaud; (9)OOK, FSK and GFSK data modulation; (10)Fully on-chip VCO; (11)Programmable frequency makes crystal temperature drift compensation possible without TCXO; (12)Suitable for frequency hopping systems; (13)Suited for systems targeting compliance with EN 300 220, FCC CFR47 part 15 and ARIB STD T-67; (14)Development kit available; (15)Easy-to-use software for generating the CC1070 configuration data.

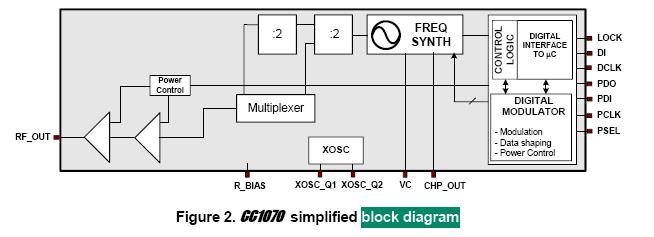

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CC1070EM-433 |
Texas Instruments |
RF Development Tools CC1070EM Eval Mod 433 MHz |
Data Sheet |
Negotiable |
|
||||||||||||
|
CC1070EM-868 |
Texas Instruments |
RF Development Tools CC1070EM Eval Mod 868 MHz |
Data Sheet |
Negotiable |
|
||||||||||||
|
CC1070RGP |
|
IC RF TX NARROWBAND 20-QFN |
Data Sheet |
Negotiable |
|
||||||||||||
 |
CC1070RGWR |
Texas Instruments |
RF Transmitter SUB 1-GHZ - SINGLE-CHIP, LOW-POWER, LOW-COST CMOS FSK/GFSK/ASK/00K RF TRANSMITTER FOR NARROWBAND & MULTI-CH APPS |
Data Sheet |
|
|
||||||||||||
|
CC1070RGWT |
Texas Instruments |
RF Transmitter SUB 1-GHZ - SINGLE-CHIP, LOW-POWER, LOW-COST CMOS FSK/GFSK/ASK/00K RF TRANSMITTER FOR NARROWBAND & MULTI-CH APPS |
Data Sheet |
|
|
||||||||||||
 |
CC1070RSQ |
Texas Instruments |
RF Transmitter 402-470 804-940MHz RF TRANSCEIVER CHIP |
Data Sheet |
|
|
||||||||||||
|
CC1070RSQR |
Texas Instruments |
RF Transmitter 400/900 MHz TRANS. TAPE AND REEL |
Data Sheet |
|
|
||||||||||||
|
CC1070-RTR1 |
Texas Instruments |
RF Transmitter Sgl-Chip Lo-Pwr Lo- Cost RF Transmitter |
Data Sheet |
|
|
||||||||||||
