CC1021RSSR

Product Summary

The CC1021RSSR is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 433, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 to 470 and 804 to 960 MHz range. The CC1021RSSR is especially suited for narrowband systems with channel spacing of 50 kHz and higher complying with EN 300 220, FCC CFR47 part 15, and ARIB STD-T96. The applications of the CC1021RSSR include Low power UHF wireless data transmitters and receivers with channel spacings of 50 kHz or higher, 433, 868, 915, and 960 MHz ISM/SRD band systems, AMR ?Automatic Meter Read, Wireless alarm and security systems, Home automation, Low power telemetry, Automotive (RKE/TPMS).

Parametrics

CC1021RSSR absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0V ; (2)Voltage on any pin: -0.3 VDD+0.3, max 5.0V; (3)Input RF level: 10dBm; (4)Storage temperature range: -50 to 150℃; (5)Package body temperature: 260℃; (6)ESD: ±1V; (7)(Human Body Model): ±0.4kV.

Features

CC1021RSSR features: (1)True single chip UHF RF transceiver; (2)Frequency range 402 MHz - 470 MHz and 804 MHz - 960 MHz; (3)High sensitivity (up to -112 dBm for 38.4 kHz and ?06 dBm for 102.4 kHz receiver channel filter bandwidths respectively); (4)Programmable output power; (5)Low current consumption (RX: 19.9mA); (6)Low supply voltage (2.3 V to 3.6 V); (7)Very few external components required; (8)Small size (QFN 32 package); (9)Pb-free package; (10)Digital RSSI and carrier sense indicator; (11)Data rate up to 153.6 kBaud; (12)OOK, FSK and GFSK data modulation; (13)Integrated bit synchronizer; (14)Image rejection mixer; (15)Programmable frequency; (16)Automatic frequency control (AFC); (17)Suitable for frequency hopping systems; (18)Suited for systems targeting compliance with EN 300 220, FCC CFR47 part 15, and ARIB STD-T96; (19)Development kit available; (20)Easy-to-use software for generating the CC1021 configuration data; (21)Fully compatible with CC1020 for receiver channel filter bandwidths of 38.4 kHz and higher.

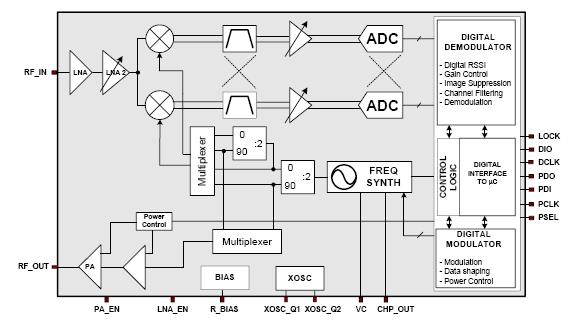

Diagrams
