Product Summary

The C5027-R is an NPN Silicon Transistor.

Parametrics

C5027-R absolute maximum ratings: (1)VCBO Collector-Base Voltage: 1100V; (2)VCEO Collector-Emitter Voltage: 800V; (3)VEBO Emitter-Base Voltage: 7V; (4)IC Collector Current (DC): 3A; (5)ICP Collector Current (Pulse): 10A; (6)IB Base Current: 1.5A; (7)PC Collector Dissipation ( TC=25℃): 50W; (8)TJ Junction Temperature: 150℃; (9)TSTG Storage Temperature: - 55 to 150℃.

Features

C5027-R features: (1)High Speed Switching; (2)Wide SOA.

Diagrams

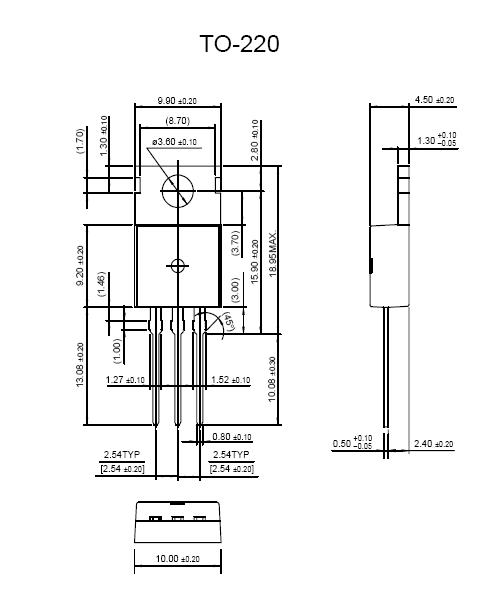

C5027-R dimension
