Product Summary
The BQ76PL536PAPT is a stackable three to six series cell lithium-ion battery pack protector and analog front end (AFE) that incorporates a precision analog-to-digital converter (ADC); independent cell voltage and temperature protection; cell balancing, and a precision 5-V regulator to power user circuitry. The BQ76PL536PAPT integrates a voltage translation and precision analog-to-digital converter system to measure battery cell voltages with high accuracy and speed. The applications of the BQ76PL536PAPT include Uninterruptible Power Systems (UPS), E-Bike and E-Scooter, Large-Format Battery Systems, Electric and Hybrid Electric Vehicles.
Parametrics
BQ76PL536PAPT absolute maximum ratings: (1)Supply voltage range, VMAX BAT1(2): –0.3 to 36 V; (2)BAT voltage to any other pin BAT to any pin: –0.3 to 36 V; (3)VC1–VC6: –0.3 to 36V; (4)VC0: –0.3 to 2V; (5)VCn to VCn-1, n=1 to 6: 0 to 36V; (6)TS1+, TS1–, TS2+, TS2–: –0.3 V to 6V; (7)Input voltage range, VIN V GPAI: –0.3 to 6V; (8)GPIO: –0.3 to VREG50 + 0.3V; (9)DRDY_N, SDO_N, FAULT_N, ALERT_N: –0.3 to 36V; (10)CONV_S, SDI_S, SCLK_S, CS_S: –2 to 1V; (11)CONV_N, SDI_N, SCLK_N, CS_N: –0.3 to 36V; (12)DRDY_S, SDO_S, FAULT_S, ALERT_S: –0.3 to 5V; (13)Output voltage range, VO GPIO: –0.3 to VREG50 + 0.3 V; (14)CB1…CB6 (CBREF = 0x00): –0.3 to 36V; (15)REG50, AUX: –0.3 to 6V; (16)Junction temperature: 150℃; (17)Storage temperature range, TSTG: –65 to 150℃.
Features
BQ76PL536PAPT features: (1)3 to 6 Series Cell Support, All Chemistries; (2)Hot-Pluggable; (3)High-Speed SPI for Data Communications; (4)Stackable Vertical Interface; (5)No Isolation Components Required Between ICs; (6)Industrial Temperature Range, –40℃ to 85℃; (7)High-Accuracy Analog-to-Digital Converter; (8)Configuration Data Stored in ECC-OTP Registers; (9)Cell Balancing Control Outputs With Safety Timeout; (10)Supply Voltage Range from 6 V to 30 V Continuous and 36 V Peak; (11)Low Power: Typical 12-μA Sleep, 45-μA Idle; (12)Integrated Precision 5-V, 3-mA LDO.

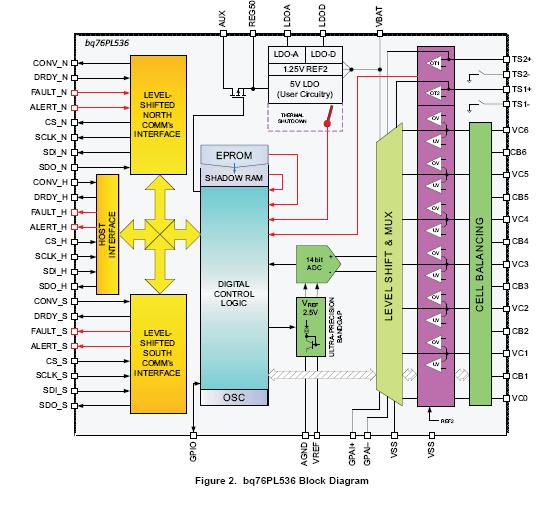

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BQ76PL536PAPT |
Texas Instruments |
Battery Management Lithium-Ion Batt Mon & Secondary Prot IC |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||

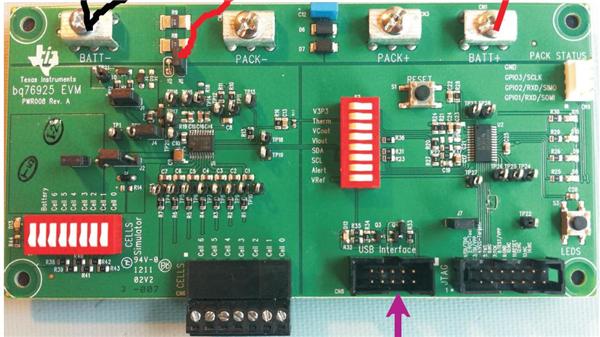

BQ76925EVM |
Texas Instruments |
Power Management IC Development Tools Eval Mod for BQ76925 |
Data Sheet |
|
|
|||||||||||||
BQ76925PW |
Texas Instruments |
Battery Management AFE FOR 3-6 SERIES LITHIUM-ION CELL |
Data Sheet |
|
|
|||||||||||||
BQ76925RGER |
Texas Instruments |
Battery Management AFE for 3-6 Series Lithium-Ion Cell |
Data Sheet |
|
|
|||||||||||||
BQ76925RGET |
Texas Instruments |
Battery Management AFE for 3-6 Series Lithium-Ion Cell |
Data Sheet |
|
|
|||||||||||||
BQ76PL102RGTT |
Texas Instruments |
Battery Management PowerLAN Dual-Cell Li-Ion Battery Mon |
Data Sheet |
|
|
|||||||||||||
BQ76PL536APAPR |
Texas Instruments |
Battery Management Li/Ion Batt Mon and Sec Prot IC |
Data Sheet |
|
|
