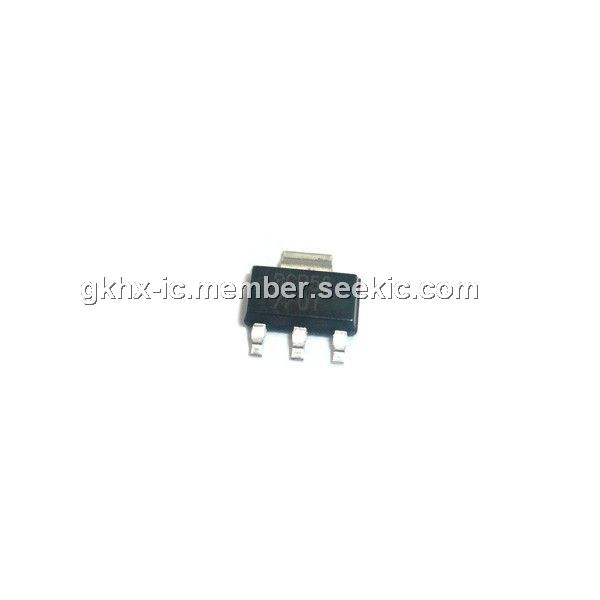

Product Summary

The BCP56 is a 1A NPN medium power transistor in a SOT223 plastic package. The application of it is switching.

Parametrics

BCP56 absolute maximum ratings: (1)emitter-base voltage open collector:5V; (2)collector current (DC):1A; (3)peak collector current:1.5A; (4)peak base current:0.2A; (5)total power dissipation Tamb ≤ 25℃:1.33W; (6)storage temperature:-65℃ to +150℃; (7)junction temperature:150℃; (8)operating ambient temperature:-65℃ to +150℃; (9) Collector-base voltage: 100V; (10)collector-emitter voltage:80V.

Features

BCP56 features: (1) High current (max. 1 A); (2) Low voltage (max. 80 V).

Diagrams

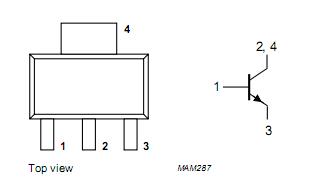

BCP56 block diagram
