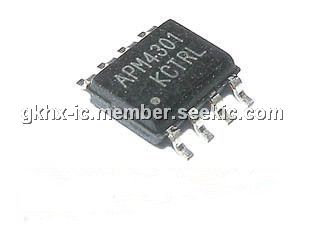

APM4301

APM4301, P-Channel Enhancement Mode MOSFET, SMD, -30V, -50A, 2W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~2.00

PartNumber:: APM4301

Brand:: Anpec Electronics Coropration - ANPEC | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-11

From Other Seller

Part Number:APM4301
US $0.01 - 2.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The APM4301 is a P-Channel Enhancement Mode MOSFET. The applications of the APM4301 include Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.

Parametrics

APM4301 absolute maximum ratings: (1)VDSS Drain-Source Voltage: -30V; (2)VGSS Gate-Source Voltage: ±25V; (3)ID* Continuous Drain Current -15; (4)IDM* Pulsed Drain Current VGS=-10V: -50A; (5)IS* Diode Continuous Forward Current: -3A; (6)TJ Maximum Junction Temperature 150℃; (7)TSTG Storage Temperature Range -55 to 150℃; (8)PD* Maximum Power Dissipation TA=25℃: 2W; (9)PD* Maximum Power Dissipation TA=100℃ 0.8W; (10)RθJA* Thermal Resistance-Junction to Ambient: 62.5℃/W.

Features

APM4301 features: (1)-30V/-15A,; (2)RDS(ON)= 5.5mΩ (typ.) @ VGS=-20V; (3)RDS(ON)= 6mΩ (typ.) @ VGS=-10V; (4)RDS(ON)= 10mΩ (typ.) @ VGS=-4.5V; (5)Super High Dense Cell Design; (6)Reliable and Rugged; (7)ESD Rating : 3KV HBM; (8)Lead Free and Green Devices Available (RoHS Compliant).
