Product Summary
The AM486DX5-133W16BGC is a microprocessor. The AM486DX5-133W16BGC enhances system performance by raising the microprocessor operating frequency to the highest levels allowed by current manufacturing technology, while maintaining complete compatibility with the standard AM486DX5-133W16BGC processor architecture and Microsoft Windows. The CPUs incorporate write-back cache, flexible clock control, and enhanced SMM.
Parametrics
AM486DX5-133W16BGC absolute maximum ratings: (1)Case Temperature under Bias: -65℃ to +110℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to ground: -0.5 V to Vcc +2.6 V; (4)Supply voltage with respect to VSS: -0.5 V to +4.6 V.
Features
AM486DX5-133W16BGC features: (1)High-Performance Design: Industry-standard write-back cache support, Frequent instructions execute in one clock; (2)High On-Chip Integration: 16-Kbyte unified code and data cache, Floating-point unit, Paged, virtual memory management; (3)Enhanced System and Power Management, Stop clock control for reduced power consumption; (4)Complete 32-Bit Architecture: Address and data buses, All registers, 8-, 16-, and 32-bit data types.

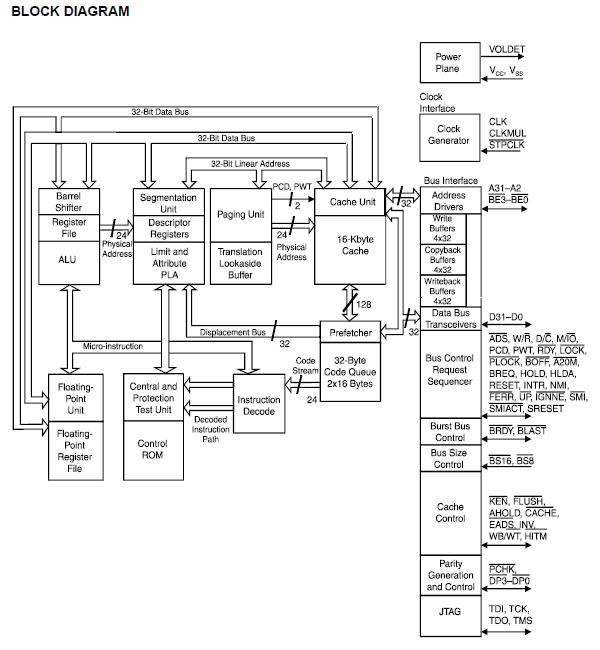

Diagrams
