Product Summary

The ADUM3200ARZ is a dual-channel, digital isolator. It is based on the Analog Devices, Inc. iCoupler technology. Combining high speed CMOS and monolithic transformer technology, the ADUM3200ARZ can provide outstanding performance characteristics superior to alternatives such as optocoupler devices. The ADUM3200ARZ is suitable for size-critical multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver isolation and digital field bus isolation.

Parametrics

ADUM3200ARZ absolute maximum ratings: (1)Storage Temperature (TST): -55 to +150℃; (2)Ambient Operating Temperature (TA): -40 to +105℃; (3)Supply Voltages (VDD1, VDD2): -0.5 to +7.0V; (4) Input Voltage (VIA, VIB) 1, 2: -0.5 to VDDI + 0.5V; (5) Output Voltage (VOA, VOB): -0.5 to VDDO + 0.5V; (6) Average Output Current, per Pin (IO): -35 to +35mA; (7)Common-Mode Transients (CML, CMH): -100 to +100kV/μs.

Features

ADUM3200ARZ features: (1)Narrow body, RoHS-compliant, 8-lead SOIC; (2)Low power operation; (3)Bidirectional communication; (4)3 V/5 V level translation; (5)High temperature operation: 105℃; (6)High data rate: dc to 25 Mbps (NRZ); (7) Precise timing characteristics; (8)High common-mode transient immunity: >25 kV/μs; (9)Safety and regulatory approvals.

Diagrams

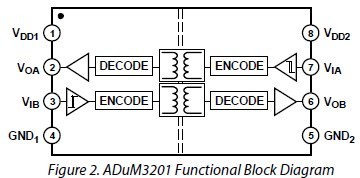

ADUM3200ARZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADUM3200ARZ
ADUM3200ARZ

IC DIGITAL ISOLATOR 2CH 8-SOIC
Data Sheet
0-1: $1.91
1-10: $1.70
10-100: $1.39
100-250: $1.26
250-500: $1.13
500-1000: $0.95
1000-2500: $0.91
ADUM3200ARZ-RL7
ADUM3200ARZ-RL7

IC DIGITAL ISOLATOR 2CH 8-SOIC
Data Sheet
0-1000: $0.95
