ADS8345E/2K5

ADS8345E/2K5, 8-channel, 16-bit, sampling Analog-to-Digital (A/D) converter, SSOP, -0.3V to 6V, 250mW, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1000 ~ 1000 :	15.00 / Piece

PartNumber:: ADS8345E/2K5

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-28

From Other Seller

Part Number:ADS8345E/2K5
US $15.00 - 15.00
Quantity:

piece

Product Summary

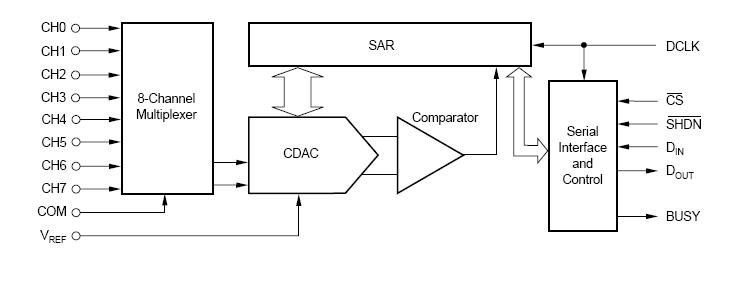

The ADS8345E/2K5 is an 8-channel, 16-bit, sampling Analog-to-Digital (A/D) converter with a synchronous serial interface. Typical power dissipation is 8mW at a 100 kHz throughput rate and a +5V supply. The reference voltage (VREF) can be varied between 500mV and VCC/2, providing a corresponding input voltage range of ±VREF. The device includes a shutdown mode which reduces power dissipation to under 15μW. The ADS8345E/2K5 is ensured down to 2.7V operation. The applications of the ADS8345E/2K5 include data acquisition, test and measurement equipment, industrial process control, personal digital assistants, and battery-powered systems.

Parametrics

ADS8345E/2K5 absolute maximum ratings: (1)+VCC to GND:–0.3V to +6V; (2)Analog Inputs to GND:–0.3V to (+VCC) + 0.3V; (3)Digital Inputs to GND:–0.3V to +6V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range:–40℃ to +85℃; (7)Storage Temperature Range:–65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

ADS8345E/2K5 features: (1)bipolar input range; (2)pin-for-pin compatible with the ADS7844 and ADS8344; (3)single supply: 2.7V to 5V; (4)8-channel single-ended or 4-channel differential input; (5)up to 100kHz conversion rate; (6)85dB SINAD; (7)serial interface; (8)QSOP-20 AND SSOP-20 packages.
