Product Summary
The ADM706RARZ-REEL7 is a 3 V Voltage Monitoring uP Supervisory Circuit. It is suitable for monitoring either 3 V or 3.3 V power supplies.
Parametrics
ADM706RARZ-REEL7 absolute maximum ratings: (1)VCC:20 mA; (2)GND:20 mA; (3)Digital Output Current:20 mA; (4)Operating Temperature Range; (5)Industrial (A Version):–40℃ to +85℃; (6)Lead Temperature (Soldering, 10 secs):+300℃; (7)Vapor Phase (60 secs):+215℃; (8)Infrared (15 secs):+220℃; (9)Storage Temperature Range:–65℃ to +150℃; (10)ESD Rating:>5 kV.
Features
ADM706RARZ-REEL7 features: (1)Precision Supply-Voltage Monitor +2.63 V; (2)100 mA Quiescent Current; (3)200 ms Reset Pulsewidth; (4)Debounced Manual Reset Input (MR); (5)Reset Output; (6)Active Low; (7)Both Active High and Active Low; (8)Voltage Monitor for Power-Fail or Low Battery Warning; (9)Guaranteed RESET Valid with VCC = 1 V.

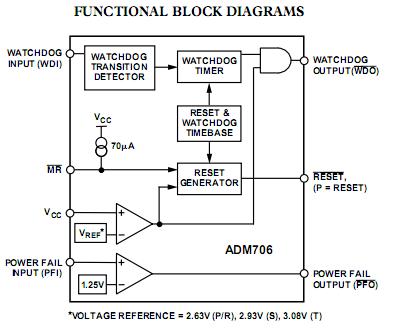

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM706RARZ-REEL7 |
|
IC SUPERVISOR MPU 2.63V WD 8SOIC |
Data Sheet |
|
|
||||||
