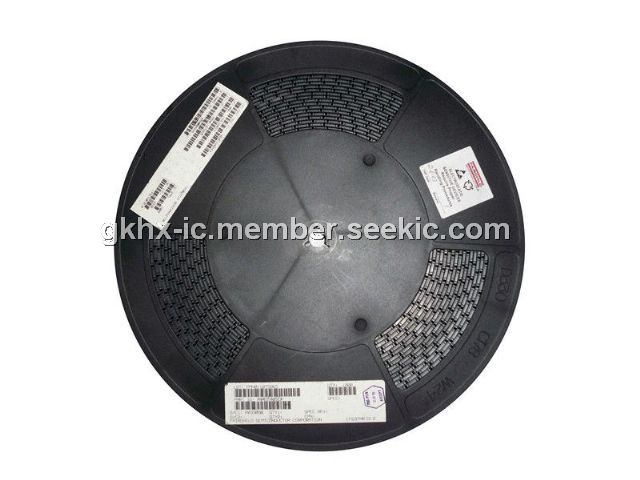

74AC240SCX

74AC240SCX, octal buffer and line driver, SOP, -0.5V to +7.0V, ±50mA, 20mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: 74AC240SCX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-06

From Other Seller

Part Number:74AC240SCX
US $0.01 - 6.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74AC240SCX is an octal buffer and line driver. It is designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density.

Parametrics

74AC240SCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Diode Current (IIK) VI = -0.5V: -20mA; (3)VI = VCC + 0.5V: +20mA; (4)DC Input Voltage (VI): -0.5V to VCC + 0.5V; (5)DC Output Diode Current (IOK) VO = -0.5V: -20mA; (6)VO = VCC + 0.5V: +20mA; (7)DC Output Voltage (VO): -0.5V to VCC + 0.5V; (8)DC Output Source or Sink Current (IO): ±50mA; (9)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50mA; (10)Storage Temperature (TSTG): -65℃ to +150℃; (11)Junction Temperature (TJ) PDIP: 140℃.

Features

74AC240SCX features: (1)ICC and IOZ reduced by 50%; (2)Inverting 3-STATE outputs drive bus lines or buffer memory address registers; (3)Outputs source/sink 24mA; (4)ACT240 has TTL-compatible inputs.
