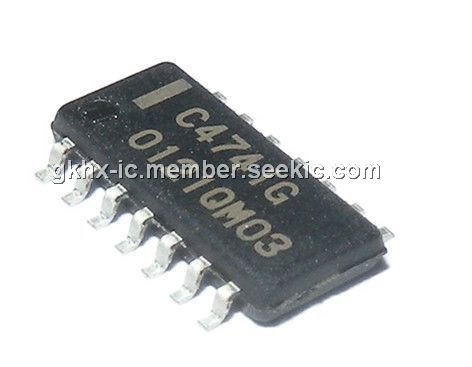

Product Summary

The UPC4741G is a High performance Quad Operational Amplifier. It consists of four independent frequencies compensated operational amplifiers featuring higher speed, broader band than general purpose type as 741. The UPC4741G is most appropriate for AC signal amplifier applications such as active filers or pulse amplifiers.

Parametrics

UPC4741G absolute maximum ratings: (1)Voltage between V+ and V- : -0.3V to +40V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: V--0.3 to V++0.3V; (4)Output Voltage: V--0.3 to V++0.3V; (5)Power Dissipation: 570mW for C package, 550mW for G2 package; (6)output Short Circuit Duration: 10 sec; (7)Operating Temperature range: -20℃ to +80℃; (8)Storage Temperature Range: -55℃ to +125℃.

Features

UPC4741G features: (1) Internal frequency compensation; (2) low noise; (3) Output short circuit protection.

Diagrams

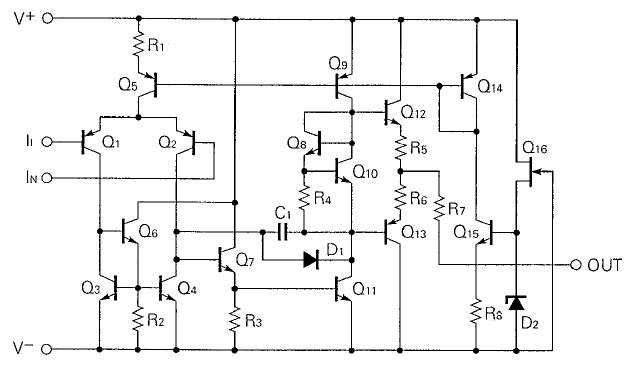

UPC4741G block diagram
