Product Summary

The 4148 is a Small Signal Diode.

Parametrics

4148 absolute maximum ratings: (1)VRRM Maximum Repetitive Reverse Voltage: 100V; (2)IF(AV) Average Rectified Forward Current: 200mA; (3)IFSM Non-repetitive Peak Forward Surge Current Pulse Width = 1.0 second: 1.0A; (4)Pulse Width = 1.0 microsecond: 4.0A; (5)Tstg Storage Temperature Range: -65 to +200℃; (6)TJ Operating Junction Temperature: 175℃.

Features

4148 features: (1)PD Power Dissipation: 500mW; (2)RθJA Thermal Resistance, Junction to Ambient: 300℃/W; (3)VR Breakdown Voltage IR = 100V; (4)IR Reverse Current VR = 20V, TA = 150℃: 50μA; (5)CT Total Capacitance: 4.0pF; (6)trr Reverse Recovery Time: 4.0ns.

Diagrams

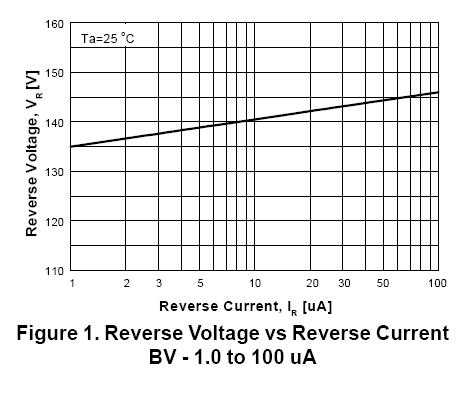

4148 graph
