Product Summary

The 2SK1590-T1B is an N-channel vertical type MOSFET. It is a switching device which can be driven directly by the output of ICs having a 5V power source. The 2SK1590-T1B has excellent switching characteristics and is suitable for use a high speed switching device in digital circuits.

Parametrics

2SK1590-T1B absolute maximum ratings: (1)Drain to source voltage: 60V; (2)Gate to Source voltage: ±20V; (3)Drain Current ID (DC): ±200mA; (4)Drain Current ID (pulse): ±400mA; (5)Total power dissipation: 200mW; (6)Channel temperature: 150℃; (7)Storage temperature: -55 to +150℃.

Features

2SK1590-T1B features: (1) Directly driven by ICs having a 5V power source; (2) Not necessary to consider driving current because of its high input impedance; (3) Possible to reduce the number of pars by omitting the bias resistor.

Diagrams

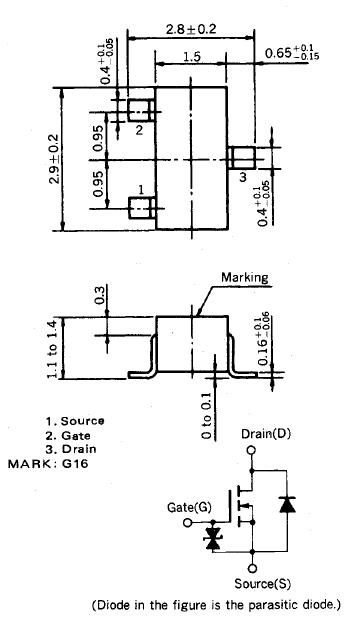

2SK1590-T1B dimension
