Product Summary
The QM30E3Y-2H is a medium power switching use insulated type transistor module. Applications include DC chopper, DC motor controllers and Inverters.
Parametrics
QM30E3Y-2H absolute maximum ratings: (1)Junction temperature: –40~+150℃; (2)Storage temperature: -40~+125℃; (3)Isolation voltage: 2500V; (4)Repetitive peak reverse voltage: 1000V; (5)Non-repetitive peak reverse voltage: 1100V; (6)DC reverse voltage: 800V; (7)DC current: 30A; (8)Surge (non-repetitive) forward current: 600A.
Features
QM30E3Y-2H features: (1)IC Collector current: 30A; (2)VCEX Collector-emitter voltage: 1000V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized.

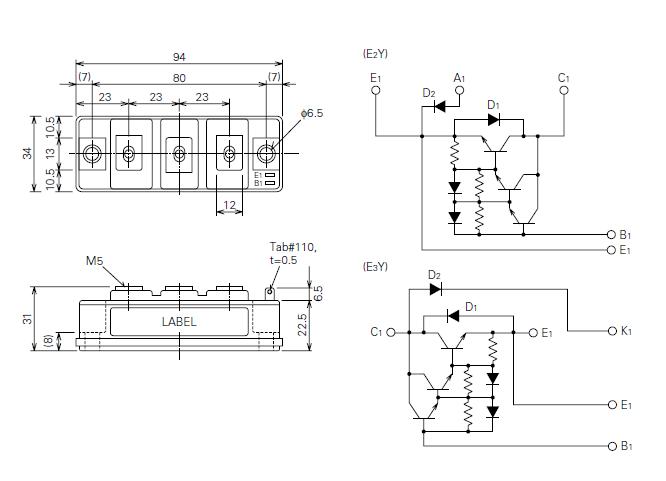

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM30E3Y-2H |
Other |
|
Data Sheet |
Negotiable |
|
||||
