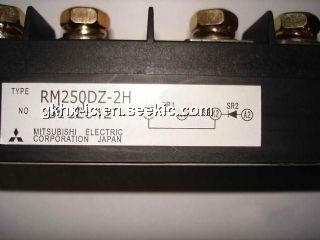

Product Summary

The RM250DZ-2H is a Mitsubishi diode module. It is used in AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment.

Parametrics

RM250DZ-2H absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 1600V; (2)VRSM Non-repetitive peak reverse voltage: 1700V; (3)VR (DC) Reverse DC voltage: 1280V; (4)IF (RMS) RMS forward current: 390A; (5)IF (AV) Average forward current: 250A; (6)IFSM Surge (non-repetitive) forward current: 5000A; (7)I2t I2t for fusing: 100000A2S; (8)f Maximum operating frequency: 1000Hz; (9)Tj Junction temperature: -40 to +150℃; (10)Tstg Storage temperature: -40 to +125℃; (11)Viso Isolation voltage: 2500V.

Features

RM250DZ-2H features: (1)IF(AV) Average forward current: 250A; (2)VRRM Repetitive peak reverse voltage: 400/800/1200/1600V; (3)DOUBLE ARMS; (4)Insulated Type; (5)UL Recognized Yellow Card No. E80276 (N), File No. E80271.

Diagrams

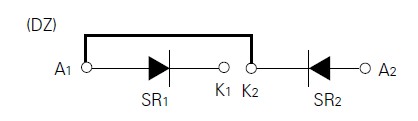

RM250DZ-2H diagram
