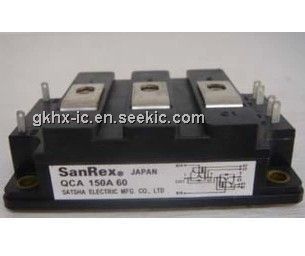

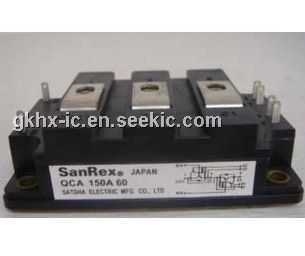

Product Summary
The QCA150A60 is a dual Darlington power transistor module with two high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. The applications of the QCA150A60 are Motor Control（VVVF）, AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application.
Parametrics
QCA150A60 absolute maximum ratings: (1)VCBO, collector-base voltage: 600V; (2)VCEX, collector-emitter voltage: 600V; (3)VEBO, Emitter-base voltage: 10V; (4)IC, collector current: 150(300)A; (5)-IC, Reverse collector current: 150A; (6)IB, base current: 9A; (7)PT, total power dissipation: 690W; (8)Tj, junction temperature: -40 to +125℃; (9)Tstg, storage temperature: -40 to +125℃; (10)VISO, isolation voltage: 2500V.
Features
QCA150A60 features: (1)IC=150A, VCEX=400/600V; (2)Low saturation voltage for higher efficiency; (3)Isolated mounting base; (4)VEBO 10V for faster switching speed.

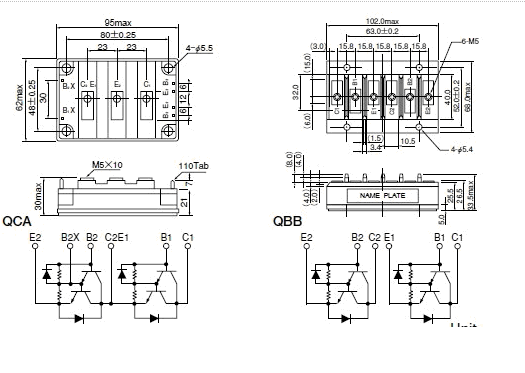

Diagrams
