Product Summary

The PWB200A40 is a Thyristor module suitable for low voltage, 3 phase recifier applications. Applications include Welding power Supply and Various DC power Supply.

Parametrics

PWB200A40 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 400V; (2)Non-Repetitive Peak Reverse Voltage: 480V; (3)Repetitive Peak Off-State Voltage: 400V; (4)Average On-State Current: 200A; (5)R.M.S. On-State Current: 314A; (6)Surge On-State Current: 5400/6000 A; (7)Peak Gate Power Dissipation: 10W; (8)Average Gate Power Dissipation: 1W; (9)Peak Gate Current: 3A; (10)Peak Gate Voltage Forward: 10V; (11)Peak Gate Voltage Reverse: 5V; (12)Operating Junction Temperature: -40~150℃; (13)Storage Temperature: -40~125℃.

Features

PWB200A40 features: (1)IT AV 200A each device; (2)high Surge Current 6000 A (60Hz); (3)Easy Construction; (4)Non-isolated. Mounting base as common Anode terminal.

Diagrams

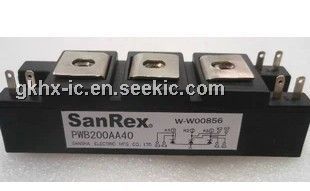

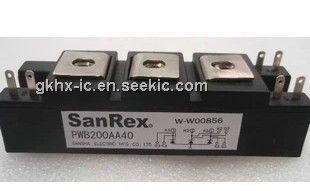

PWB200A40 circuit
