Product Summary
The PS12012-A is an Application Specific Intelligent Power Module. The PS12012-A is used in acoustic noise-less 0.2kW/AC400V Class 3 Phase inverter and other motor control applications.
Parametrics
PS12012-A absolute maximum ratings: (1)Supply voltage: 900V; (2)Supply voltage (surge): 1000V; (3)Each output IGBT collector-emitter static voltage: 1200V; (4)Each output IGBT collector-emitter surge voltage: 1200V; (5)Each output IGBT collector current: ±5 (±10)A; (6)Brake IGBT collector current: 5 (10)A; (7)Brake diode anode current: 5 (10)A.
Features
PS12012-A features: (1)3-Phase IGBT inverter bridge configured by the latest 3rd. generation IGBT and diode technologies; (2)Circuit for dynamic braking of motor regenerative energy.

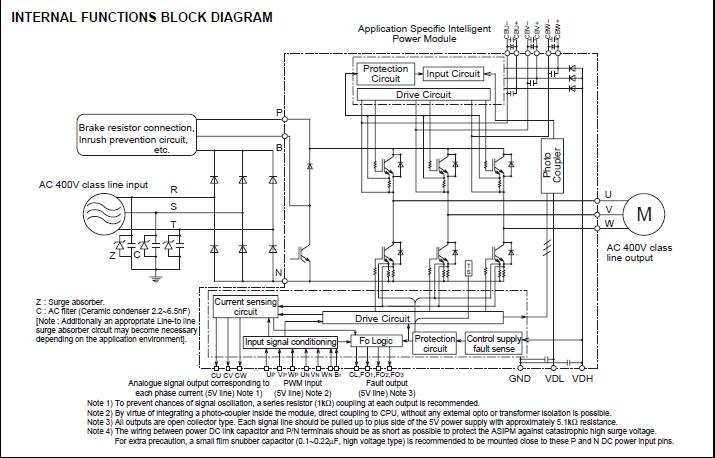

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

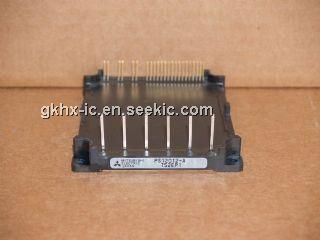

 PS12012-A |
|
MOD IPM 3PHASE IGBT 1200V 5A |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
PS120 |
Apex Tool Group (Formerly Cooper Tools) |
Screwdrivers, Nut Drivers & Socket Drivers Xcelite Nutdvr Set 11 Pcs, Inch Sizes |
Data Sheet |
|
|
||||||
|
PS1200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PS1201 |
Clare |
Triac & SCR Output Optocouplers NO PC-Mount 1-CHANNEL SIP |
Data Sheet |
Negotiable |
|
||||||
|
PS12012-A |
|
MOD IPM 3PHASE IGBT 1200V 5A |
Data Sheet |
Negotiable |
|
||||||
|
PS12013-A |
|
MOD IPM 3PHASE IGBT 1200V 5A |
Data Sheet |
Negotiable |
|
||||||
|
PS12014- PS12014-A |
Other |
|
Data Sheet |
Negotiable |
|
||||||
