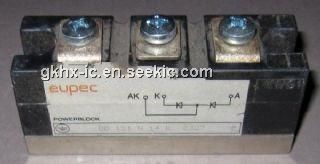

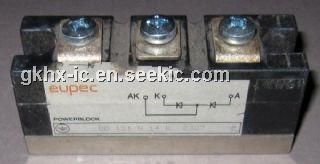

Product Summary

The DD151N14K is an eupec GmbH. It is no time-limit set for case temperature during operation.

Parametrics

DD151N14K absolute maximum ratings: (1)repective peak reverse voltage: 1200V; (2)non-repective peak reverse voltage: 1800V; (3)RMS forward current: 240A; (4)mean forward current: 151A; (5)surge forward current: 5300A; (6)max. junction temperature: 150℃; (7)operating temperature: -40~+150℃; (8)storage temperature: -40~+150℃; (9)creepage distance: 14 mm.

Diagrams

DD151N14K circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DD151N14K
DD151N14K
Infineon Technologies
Discrete Semiconductor Modules 1400V 240A
Data Sheet
0-1: $60.54
1-10: $54.49
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DD151
DD151
Vishay/BC Components
Ceramic Disc Capacitors 150PF 1KV 10%
Data Sheet
Negotiable
DD151N08K
DD151N08K
Infineon Technologies
Discrete Semiconductor Modules 0.8KV 151A
Data Sheet
0-1: $61.40
1-10: $55.94
DD151N12K
DD151N12K
Infineon Technologies
Discrete Semiconductor Modules 1200V 240A
Data Sheet
0-1: $64.57
1-10: $58.12
DD151N14K
DD151N14K
Infineon Technologies
Discrete Semiconductor Modules 1400V 240A
Data Sheet
0-1: $60.54
1-10: $54.49
DD151N16K
DD151N16K
Infineon Technologies
Discrete Semiconductor Modules 1600V 240A
Data Sheet
0-1: $71.49
1-10: $64.34
DD151N18K
DD151N18K
Infineon Technologies
Discrete Semiconductor Modules 1800V 240A
Data Sheet
0-1: $74.57
1-10: $67.12
